WQD/WQ-QG series sewage submersible pump belt cutting

Product Description

WQD -QG/WQ-QG type sewage submersible
Application and features:
WQD,WQ type sewage sewage submersible electric pump motor is located in the upper part of the electric pump , single-phase or three-phase asynchronous motor , pump is located in the lower part of the motor , the dynamic seal between the pump and the motor adopts double-end mechanical seal . The static seal at the fixed stop is made of "0" type sealing ring made of oil-resistant rubber . This series of electric pump is suitable for wide industry , agriculture , mining , civil construction , municipal environmental protection and other places , is pumping mud , mortar , domestic wastewater , sewage feces and containing short fiber , paper , sand and other solid particles and rural drainage and irrigation , river pond silting ideal equipment .
Usage conditions and precautions:
1.The liquid temperature of the water supply is less than + 40 , and the PH value of the medium is between 4-10;
2.The density of the medium is not greater than 1200 kg/m3;
3.The power supply frequency is 50Hz , single-phase voltage is 220V , three-phase vlotage is 380V , The voltage fluctuation range is 0.9-1.1 times of the ratde value .
4.Use a lift less than 80% of the rated lift of the electric pump and a diving depth not more than 5M .
Model meaning:
Specifications , models and main technical parameters:

Model	Power		Max Flow	Max Head	Inlet/Outlet	Paking Demension
	KW	HP	L/Min	M	Inch	MM
WQD/WQ-QG10-10-0.55 QG	0.55	0.75	170	10	2″*2″	220*200*430
WQD/WQ-QG15-12-0.75QG	0.75	1	250	12	2″*2″	220*200*430
WQD/WQ-QG18-12-1.1QG	1.1	1.5	300	12	2″*2″	440*235*190

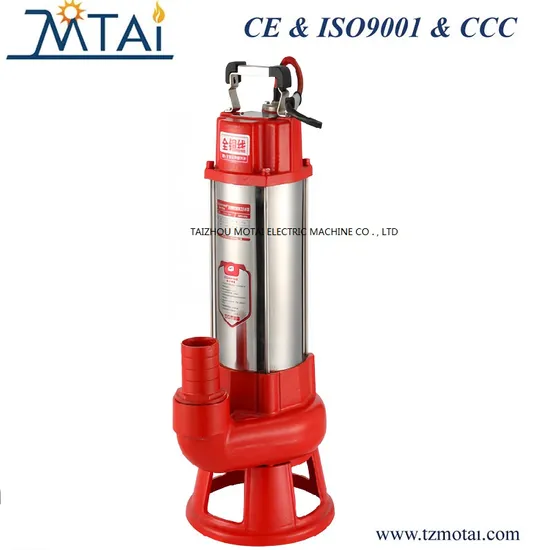

Product picture show:

Packing & Shipping : To avoid damp, inner layer wrapped with plastic paper
To lessen vibration, middle layer filled with foam
To avoild squeeze, motor are packed with plywood or wooden case
Customized package is also accept

PAINTING COLOR CODE
ADVANTAGE:
Pre-sales service:
•We are a sales team, with all technical support from engineer team.
•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
After-sales service:
•We respect your feed back after receive the motors.
•We provide 1years warranty after receipt of motors..
•We promise all spare parts available in lifetime use.
•We loge your complain within 24 hours.
