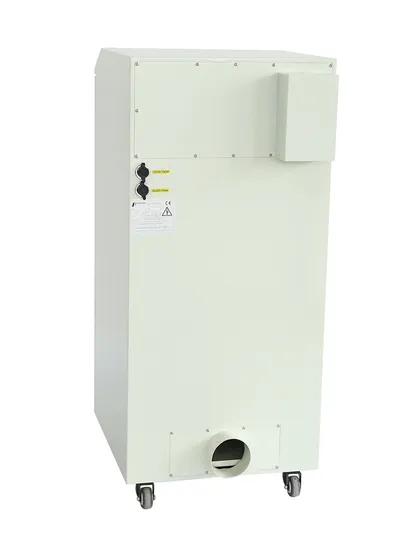

Pure-Air Hot Sale Non-Metal CO2 Laser Engraving Machine Laser Dust Collector (PA-500FS-IQ)

Product Description

Pure-Air Hot Sale Non-Metal CO2 Laser Engraving Machine Laser Dust Collector (PA-500FS-IQ)
1. Our Customers
Universal Laser, Epilog laser, GCC laser, Trotec Laser, FOBA laser, HGTECH laser, wuhan Golden laser, Foshan HSG laser,Han's laser, Bodor laser, YueMing Laser, Redsail Laser, Jinan Jindiao laser, Glory Laser, GuangZhou CK Laser, Baisheng laser, etc.
2. Application:
Pure-Air PA-500FS-IQ laser fume extractor suitable for fume filtration and dust collection for Laser cutting/engraving non-metal. It's suitable for working area during 600*400mm CO2 laser machine. With LCD display and remote control, Low noise, bigger suck power, high filtration performance,nice quality, easily move. It can work with laser machine synchronously.
PA-500FS-IQ fume extractor has very good performance for both filtrate fumes, collect dust and adsorb strong smell during laser cutting/engraving non-metal like Acrylic/plastic/PVC/paper/marble/ABS/Glass/Rubber/wood/plywood/mdf
and so on.


3. Specification Sheet:

Equipment Data
Item	Technical Data	Remark
Fume & dust inlet	75mm/100mm	Single/Double fume inlets, include one/two set fume extract tubes
Fresh air outlet	100mm	Trapezoid hole
Machine weight	56KG (N.W.) 85KG(G.W)	Machine with all elements
Dimension	500*550*900mm	Machine size
Package dimension	600*650*1050mm	Packed by plywood crate
Blower Technical Data
Item	Technical Data	Remark
Running period	more than 10,000h	One year guarantee
Max. air flow	500m³/h	/
Input capacity	350W TaiWan blower	Low capacity
Air pressure	3500pa	High pressure
Running sound	≤50dBA	/
Input power	110/220V, 50/60Hz	International standard
Filter Elements Data
Item	Technical Data	Remark
G3 Primary filter PA500-01	G3 class, life time 1-3months	For remove big and heavy particles/smoke/dust(>=5 Micron)
Pre-filter PA500-02	F8 class, life-time 1-3 months	F8 medium efficiency filter for remove big particles/smoke/dust(>=1 Mircron).
Main-filter PA500-03	H13 class HEPA, life-time 4-10 months	Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.
Gas-filter PA500-04	Chemical material, life-time 6-12 months	Chemical molecular, Oxidant & Active carbon adsorb noxious gas.
Average filtration rate	≥99.7%	It will be a little fluctuation according to different materials.

4. Product Description
Pure-Air PA-500FS-IQ laser fume extractor suitable for fume filtration and dust collection for CO2 Laser cutting/engraving non-metal. PA-500FS Air flow is 500m3/h, blower capacity is 350W, it's with LCD display to show air flow and air pressure, air flow can be adjustable by both key switch and remote control, has warning systems to remind customer to replace filters once they are blocked. It included below 4 layer filters to make sure the high air purficiation performance. 1) 1st layer is G3 Primary filter for remove big and heavy particles/smoke/dust(>=5Micron)
2) 2nd layer is F8 medium efficiency bag filter for remove big particles/smoke/dust(>=1Mircron).
3) 3rd layer is H13 class HEPA filter to remove small particles (>=0.01Mircron) and smoke.
4) 4th layer is Activated carbon filter to adsorb smells and toxic gas

Pure-Air PA-500FS-IQ fume extractor with below specification to make sure high quality and good performance.
1) Tai Brand brushless blower, low noise, high rotate speed, running steady, long life, energy saving, high efficiency;
2) Four stage big clogging capacity filtration design to ensure filtrate harmful material of the fumes completely,
to achieve room air quality standard, protect environment and people's health;
3) Primary filter, Medium Efficiency Filter, main HEPA filter & gas filter both can replace individually, extend filter's
use life and reduce filter replacement cost;
4) Metal framework structure desgin, equipment with small size, saving floor space and can be movable easily;
5) After multi-stage dust filtration, can be directly emitted in the room without expensive & complex exhaust project.The indoor temperature can be stability, and save energy.
5.More Products
6. About Us
Dongguan Pure-Air Tech Co.,limited. was founded in Dongguan, China in year 2011,
Under our product brand namePURE AIR,we are a professional industrial fume extraction system manufacturer .
Pure-Air specializes in the field of industrial fume filtration, dust collection and air purification. Our expertise in technology research, product development, production, sales, and service of fume extraction systems are comparable to the European advanced air purification technology.With high-quality professionals& strict quality management system, our fume extractors have very high consumer satisfaction and big market share.
Pure-Air factory has high speed fiber laser cutting machine, CNC punching machine,bending machine and welding machine to make metal parts&cabinet, we control the product quality and provide customer high quality product with short lead time.
AllPure-Air products are CE certified, export to more than 85 countries with 15800 projects. We also have patent rights for certain models.
Pure-Air fume extraction system widely used in laser cutting,engraving;laser marking,welding;laser cleaning, electronic soldering, reflow soldering and wavesoldering,metal welding,polishing,turning, CNC machining,digital & 3D printing,food producing, beauty salon and other industry.
Below are our main products:
Laser fume extractor Soldering fume extractor Welding fume extractor Nail dust collector Oil mist filter
Pure-Air aim is to provide customer with professional air purification solutions, reduce the risk of occupational diseases, improve productivity & cost savings. Please remember us: Pure-Air, the first choice of industry fume extractor!
7.Exhibition
8.Why Choose Us
9.Packaging & Shipping 10.FAQ
Q: Are you trading company or factory?
A: We are professional factory for making fume extractor, dust collector;

Q: Do you only sell products in name of your own brand PURE-AIR?
A: Except sell in name of our brand, we can also make OEM products and show customer's LOGO;

Q: How long is your delivery time?
A: Normally it is 2-10 days for standard products, for customized products takes 10-20days;

Q: How about your package?
A: We pack goods firstly with stretch film and then pack in strong plywood box, plywood box no need do fumigation.

Q: How long is the quality guarantee of your fume extractor?
A: We can offer 1 year quality guarantee and life-long maintenance of our machine after the warranty period.
