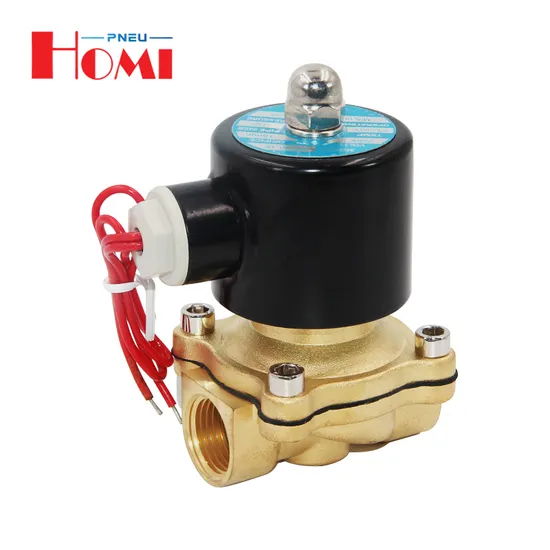

DN15 1/2 Inch 2W-160-15 Normally Closed Brass AC220V DC12V DC24V 2 Way Electric Solenoid Valve Pneumatic Valve
| US$6.07 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
2W-160-15
Actuator
Pneumatic
Connection Form
Thread
Type
Direct Acting
Material
Brass
Pressure
Low Pressure
Valve Structure
Direct-Acting Piston Structure
Power Supply
AC Solenoid Valve
Usage
Flow Control
Standard
DIN
Application
Industrial Usage, Household Usage
Transport Package
Box Package
Trademark
Homipneu
Origin
China
HS Code
8481100090
Production Capacity
500000/M
Product Description
| Product Information | |||
| Brand | HOMIPNEU | Action Mode | Normally Close (open when power on, close when power off) |
| Product Description | Water and gas general solenoid valve | Using fluid | Water, gas, oil (non-corrosive) |
| Model Number | 2W Series | Working Temperature | -5ºC~90ºC |
| Body material | Brass | Working Pressure | 0-1.0MPA |
| Product type | Straight through | Voltage | AC220V DC24V DC12V |
Sales Specifications: 1 Pcs
Model A: AC 220V
Model B: DC 12V
Model C:DC 24V
Product Name:Normally closed electromagnetic valve
Model: 2W: Two-position two-pass-through
Form: normally closed
Working method: direct-acting
Working medium: air, water, oil (2W025-08, 2W040-10, 2W160-15.2W200-20, can work in other gas)
Fluid viscosity: 25CST or less.
Guaranteed pressure: 1.0Mpa
Working temperature: -5~80 degrees Celsius
Seal material :NBP/EPDM or VITON
Pressure range: air 0~0.7Mpa, water 0~0.5Mpa, oil 0~0.5Mpa
Body material: 2W zinc alloy, copper coil.
Installation method: The direction of the water flow is shown above the valve body, and the installation will not be able to be used in reverse. The outlet water flow will also lead to no use.
