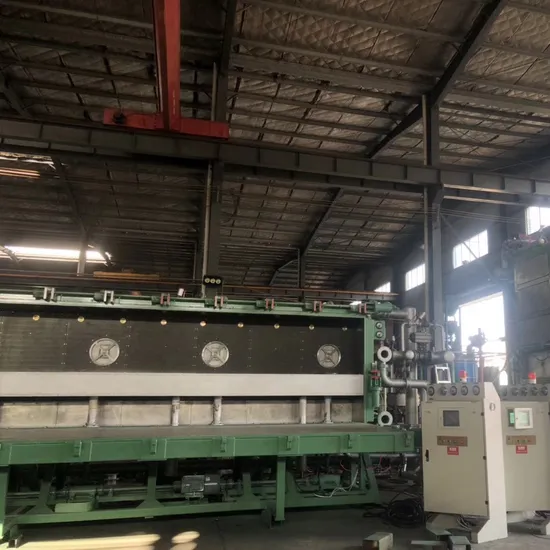

Automatic EPS Polyfoam Vacuum Block Molding Machine Manufacturer with CE
| US$20,000.00-70,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PB2000~6000
Type
EPS Foam Machine
Raw Material
EPS
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Plastic Type
EPS
Machine Type
Horizontal Type, Vertical Type
Block Size
Can Be Customized
Voltage
Can Be Customized
Machine Color
Can Be Customized
Transport Package
Standard Export Package
Trademark
Dongshen
Origin
Zhejiang, China (Mainland)
HS Code
8477800000
Production Capacity
20 Unit / Month
Product Description
Main Features:1,Strong Structure:
Machine is made of high-strength square tubes and thick steel plates.
Machine's all six panels are through heat treatment to release welding stress, so that panels cannot deform under high temperature.
After heat treatment, all panels are processed by sand blasting treatment t remove rust, then first painting and final painting is done to keep machine anti-corrosion.
2,Steam System:
Use three ball valves to control steam, saving 20% steam comparing to traditional one main valve system.
Steaming is controlled by Timer and three Germen electrical gauge switches, with a safty valve to save from gauge malfuncton situation.
3,Control System:
Machine with PLC and touch screen for easy operation.
TECHNICAL DATA | ||||||
| Item | PSB-DF200 | PSB-DF300 | PSB-DF400 | PSB-DF600 | PSB-DF800 | |
| Mould Cavity Size | 2040*1240*630(mm) | 3060*1240*630(mm) | 4080*1240*630(mm) | 6100*(1240-940)*630(mm) | 8120*(1240-940)*630(mm) | |
| Block Size | 2000*1200*600(mm) | 3000*1200*600(mm) | 4000*1200*600(mm) | 6000*(1200-900)*600(mm) | 8000*(1200-900)*600(mm) | |
| Steam | Entry Consumption Pressure | DN40 20-30kg/cycle 0.8MPa | DN65 30-40kg/cycle 0.8MPa | DN100 45-55kg/cycle 0.8MPa | DN100 60-70kg/cycle 0.8MPa | DN150 80-100kg/cycle 0.8MPa |
| Compressed Air | Entry Consumption Pressure | DN40 1-1.5m³ /cycle 0.6MPa | DN40 1.5-1.8m³ /cycle 0.6MPa | DN40 1.8-2m³ /cycle 0.6MPa | DN40 2-2.3m³ /cycle 0.6MPa | DN40 2.2-2.5m³ /cycle 0.6MPa |
| Drainage | Steam Vent Blower exit | Φ 100mm Φ 100mm | Φ 125mm Φ 125mm | Φ 200mm Φ 150mm | Φ 200mm Φ 150mm | Φ 200mm Φ 150mm |
| Throughout | 15kg/m³ | 12min/cycle | 15min/cycle | 18min/cycle | 18min/cycle | 18min/cycle |
| Connected Load | 9.5Kw | 9.5Kw | 13Kw | 13Kw | 13Kw | |
| Overall Dimension | 4000*2150*2120(mm) | 5030*2270*2120(mm) | 6040*2270*2250(mm) | 8100*2500*3100(mm) | 11300*2600*3300(mm) | |
| Weight | 4200kg | 6000kg | 8500kg | 9500kg | 13800kg | |
| Room Height Required | 6000mm | 6000mm | 6000mm | 6000mm | 6000mm |
