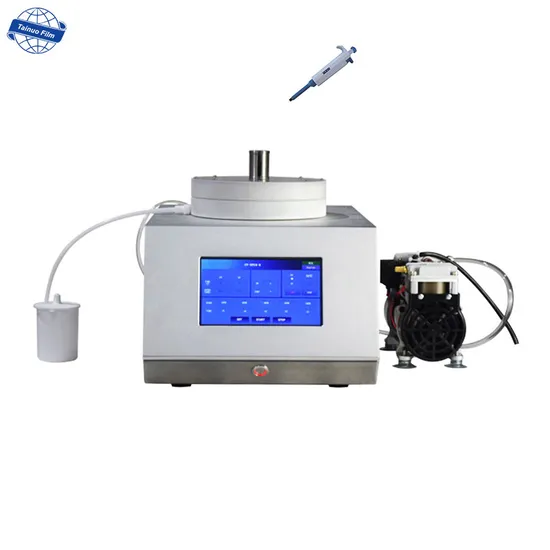

Lab 4 Inch 8 Inch 12 Inch Compact Spin Coater with Vacuum Chucks for Photoresist

Product Description

Lab 4 Inch 8 Inch 12 Inch Compact Spin Coater with Vacuum Chucks for Photoresist
Product Description
Spin coating is a procedure used to deposit uniform thin films to flat substrates. Usually a small amount of coating material is applied on the center of the substrate, which is either spinning at low speed or not spinning at all. The substrate is then rotated at high speed in order to spread the coating material by centrifugal force.

Application of the spin coater
The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films. It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc. Product Parameters

Power supply	AC220V, 50Hz
Chamber material	PTFE
Upper cover	PVC (Polyvinyl chloride, for observing th e coating state conveniently)
Sample stage	Gold-plated copper plate, with good thermal conductivity
Substrate size	Diameter ≤ 4 inches
Heating mode	Ceramic heating ring
Operating temperature	RT-200ºC
Rotation speed	0-10000rpm
Speed resolution	1rpm
Operation Mode	7 inch HD LCD touch screen
Glue dropping mode	Manual glue dispensing, liquid can be supplied during spin coating
Liquid drain pipe and waste liquid tank	PTFE
Spin coating curve	Each curve has 5 segments, a total of 5 curves can be stored
Vacuum chuck	Gold-plated, 3 pieces with diameters of 10mm, 25mm, 55mm
vacuum pump	Oil-less pump
Pumping speed	50 L/min

Detailed Photos
