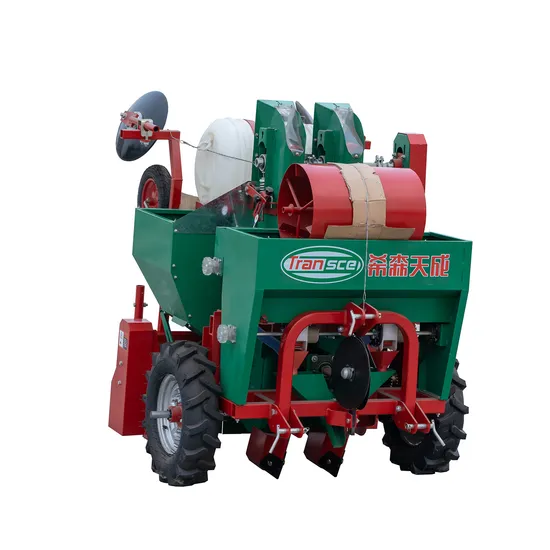

Good Performance 30~45kw Automatic Single Ridge Double Rows Crop Potato Planter

Product Description

Code No.	2CM-1/2	Ditcher type	Double-sided Plow Point
Structural form	Trifilar suspension type	Ridge type	Disc Type
Machine Size(L*W*H) :	2600*1400*1650mm	Damage rate of seed potato bud	≤1.5%
Machine Weight:	460kg	Seed box Volume	140L
Power Required:	30~45kw	Fertilizer box Volume	70L
Row spacing	270~350mm	Pesticide box	optional
Working Ridge	1ridge2rows	Wheel type	Herringbone Rubber Tyre
Working Width	850~1200mm	Distance Between Plants	170~440mm
Planter Type	Belt scoop type (replaceable)	sprayer heads	2×2
Planter Quantity	30×2	Adaptive agricultural film width	800~1000mm

The 2CM-1/2 potato planter is a suitable for small area mechanized potato planting machinery. It can open furrow, fertilize, sow, ridge, level off, spray, spread plastic film and spread drip irrigation pipe at one time.In practical application, It has the characteristics of saving labor, early emerging seedlings, retaining water, raising temperature, good shape, big potatoes, high yield, early market and so on.
1,Increasing yield mechanism of plastic film mulching: Plastic film mulching has the following functions: first, it raises the ground temperature and improves the soil environment of the tillage layer. Plastic film mulching can make full use of solar energy and store light and heat in the soil. The experimental results showed that plastic film mulching could increase the surface temperature by 0.4 ~ 7.3ºC and the depth of 10cm underground by 0.9 ~ 5.0ºC. This effect could meet the temperature requirements of seed potato germination and root growth, promote the rapid growth of plant vegetative organs and prolong the growth period, which was conducive to potato formation. Planting potato in high altitude humid area has significant effect on raising ground temperature, improving heat condition, promoting normal ripening and increasing yield.
2,High precision sowing. Adapting advanced scoop type seed planter device,vibration,shaking,chain tensioning technology and Electronic vibrating device.low seed leakage rate, reseed rate, high sowing accuracy.
3,Strong adaptability. Planting depth and width, ridge width and row spacing can be adjusted according to planting habits in different regions.
4,Advanced potato ridge control technology: the existing potato planter mostly uses plough type supporting soil plate or disk type supporting soil plate, its Angle is not easy to adjust, irregular ridge shape. The potato planter broke through the inherent mode and developed the disc type ridge loader, which expanded the application range, making the applicable row spacing higher than the current 600-700mm to 700-900mm, and the suitable plant spacleakageing higher than the current 200-350mm to 170-440mm. The ridge shape control is more diversified and can meet different agronomic requirements.
5,Pesticide spraying uniform. The spraying system uses PTFE nozzle with higher degree of atomization, not only its Angle can be adjusted, but also the traditional spraying after planting potato is changed to front and back spraying, so that the coverage is more tight.
