Good Service Three Phase Low-Voltage Reactive Power Controller 380V Switching Self-Healing High-Efficiency Capacitor

Product Description

Product Description General

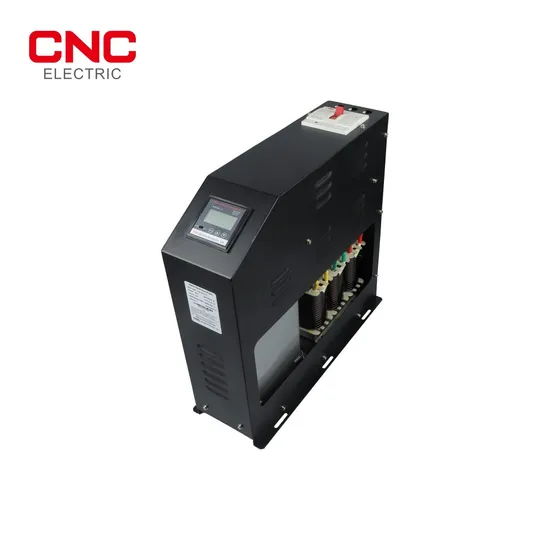

YCZN Intelligent Capacitor is an integrated reactive power compensation device designed
for 0.4kV power grids. It consists of measurement and control module, capacitor switch-
ing and composite switch, capacitor protection module, and two ( type) or one (Y type)
low-voltage self-healing capacitor, forming an independent and complete intelligent compen- sation unit.
The low-voltage reactive power compensation device composed of intelligent capacitors offers several advantages, including flexible compensation modes, easy installation and maintenance, strong protection functions, compact size, excellent compensation effective- ness, low power consumption, and high reliability. It meets the fine requirements of users for improving power factor, enhancing power quality, and reducing energy losses through reactive power compensation.
When applied in industrial and mining enterprises with harmonic currents, it is recommend- ed to use intelligent capacitors with reactive impedance to mitigate harmonics.
Use environment
Ambient temperature: -20°C~+55°C
Relative humidity: ≤20% at 40°C; ≤90% at 20°C
Altitude: ≤2500m
Environmental conditions: no harmful gases and vapors, no conductive or explosive dust, no severe mechanical vibration
Techniacal data

Working voltage	Shared compensation: AC 450V ± 20% Phase-splitting compensation: AC 250V ± 20%
Harmonic voltage	Sinusoidal wave, total harmonic distortion ≤ 5%"\
Rated frequency	50/60HZ
Power consumption	≤3VA

Reactive power compensation error	≤50% of the minimum capacitor capacity
Capacitor switching time	≥ 10s, adjustable from 10s to 180s

Voltage	±0.5%
Current	±0.5%
Power factor	±1%
Temperature	±1ºC

Voltage	±0.5%
Current	±0.5%
Temperature	±1ºC
Time	±0.1s

Permissible switching times		100 1 million times
Capacitor capacity	Run time decay rate	≤1%/ year
	Switching decay rate	≤1%/ million times

Compensation modes	Model	Capacitor rated voltage (V)	Rated capacity (Kvar)	Reactance rate
Conventional three-phase shared compensation	YCZN-S 450/5+5	450	10	/
	YCZN-S 450/10+5	450	15
	YCZN-S 450/10+10	450	20
	YCZN-S 450/20+10	450	30
	YCZN-S 450/20+20	450	40
	YCZN-S 450/25+25	450	50
	YCZN-S 450/30+30	450	60
Conventional phase-splitting compensation	YCZN-F 250/5	250	5
	YCZN-F 250/10	250	10
	YCZN-F 250/15	250	15
	YCZN-F 250/20	250	20
	YCZN-F 250/25	250	25
	YCZN-F 250/30	250	30
	YCZN-F 250/40	250	40
Anti-harmonic three-phase shared compensation	YCZN-KS 480/10	480	10	7%/14%
	YCZN-KS 480/20	480	20	7%/14%
	YCZN-KS 480/30	480	30	7%/14%
	YCZN-KS 480/40	480	40	7%/14%
	YCZN-KS 480/50	480	50	7%/14%
Anti-harmonic phase-splitting compensation"	YCZN-KF 280/5	280	5	7%/14%
	YCZN-KF 280/10	280	10	7%/14%
	YCZN-KF 280/15	280	15	7%/14%
	YCZN-KF 280/20	280	20	7%/14%
	YCZN-KF 280/25	280	25	7%/14%
	YCZN-KF 280/30	280	30	7%/14%
