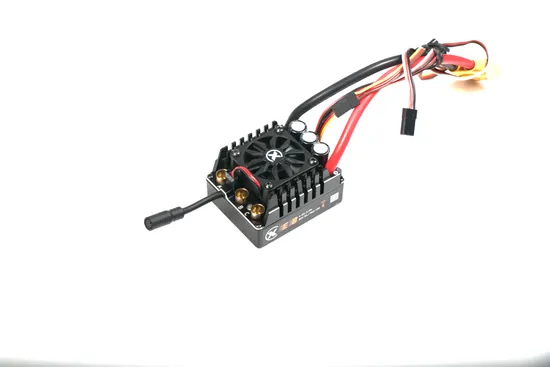

RC Car Electronic Speed Controller ESC for RC Car & Trucks, 3-6s, 160A

Product Description

XC-E8 electronic speed controller (ESC), a compact potent combination of hardware and unique software is engineered to power enthusiasts' RC cars and trucks, pushing limits to next level with evolution and innovation.
Powerful System
With 6S LiPo batteries, up to 160A continuous current power system, this electronic speed controller (ESC) can handle anything the motor pours out, and you will be able to do any stunt to show your skills.
Adjustable BEC
Built in powerful DCDC conversion circuit provides potent loading capacity for BEC. BEC provides 6.0V, 7.4V, 8.4V options and 10A continuous current, 25A peak, select the one that is suitable for servo.
Smart Thermal Dissipation
E8 electroonic speed controller combines of a 40mm fan and Al alloy forged heatsink, E8 speed controller can maximize air flow through the system, bringing your RC cars or trucks to top performance while remaining speed controller (ESC) "cool".
The fan is controlled intelligently by speed controller (ESC). When temperature exceeds 55 Celsius degrees, the fan will be turned on; when temperature drops below 50 Celsius degrees, the fan will be turned off. This will help save energy and reduce noise.
Built-in Bluetooth Communication and Mobile App
Comparing with the established brands, XC technology tends to innovate and bring revolutionary changes to RC field. XC technology is the first one to integrate Bluetooth into speed controller (ESC). Connecting to Mobile App, static data (ESC records) and real-time running data will be monitored. Everything is under control.
Parameter setting and firmware upgrade can be managed on the Mobile App through Bluetooth communication.
Furthermore, you can control the ESC completely without need of additional modules such as Bluetooth module and programming card.
IP67 Waterproof
E8 rc car electronic speed controller (ESC) is potted in modified epoxy with excellent anti-aging for waterproof and heat transfer, allowing you to drive RC cars or trucks in any weather and terrain conditions.
Multiple Protection
Multiprotection measures have been designed, under voltage, throttle loss, abnormal braking, over temperature, short circuit, abnormal Hall sensing etc., especially the wave-by-wave current limiting and active freewheeling.
The current limiting can reduce the pulse current impact on switch MOS and motor, enhancing service life. The active freewheeling can reduce MOS generating heat and current pulse, improving reliability of key components.
Specification:

Model No.	E8	Motor Type	BLDC Sensored/Sensorless
Current	160A continuous	Motor Speed	240000 electric speed
Cell	3-6S LiPo	Bluetooth	Built-in
BEC	6.0v/7.4v/8.4v	Mobile App	Available for parameter setting
Cooling Fan	Auto turn on/off	Turbo Timing	Available
Waterproof	IP67 Rating	On-line Upgrade	Available
Protection	Over voltage, Low voltage, Over temperature, Throttle loss etc.
Weight	165g (with wire)	Dimension	59.8*48.2*35.9mm

Programmable Items

	Item	Description				Default
1	Running mode	Forward with brake	Forward&Reverse and Brake	Forward with reverse		Forward&Reverse and Brake
2	LipoCells	Auto	3-6S
3	Cutoff Voltage	Disabled	2.8V	3.1V	3.2V	3.1V
4	Motor Rotation	Forward	Reverse			Forward
5	BEC voltage	6.0V	7.4V	8.4V		6.0V
6	Max.Brake Force	0~100%				60%
7	Max.Reverse Force	0~100%				25%
8	Punch	0-12 level				6th
9	Drag Brake Force	0-100%				0
10	Turbo Timing	0-28 degree				26 degree
11	Turbo Delay	0-1s				1s
12	Initial PWM	0-10%				1%
