PE Extrusion Lamination Machine Nonwoven Fabric Laminating Machine for Nonwoven Extrusion Coating Lamination Machine Manufacturer
Basic Info.
Model NO.
KTLM-EX150
Application
Particle Board, Fiberboard, Aluminium Plate, Packaging Paper, Film Material, Color Printing, Soft Board, Non Woven Fabric
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
Paper, Textile Fabric, Non Woven Fabric,
Plastic Film Mulching Modes
Extrusion Lamination Machine
Performance
Extrusion Lamination Machine
Product Name
Extrusion Lamination Machine
Keyword
PE Extrusion Lamination Machine
Keyword 1
Extrusion Coating Lamination Machine
Keyword 2
Extrusion Coating Lamination Machine Manufacturer
Keyword 3
Nonwoven Fabric Laminating Machine
Keyword 4
Laminating Machine for Nonwoven
Keyword 5
Nonwoven Lamination Machine
Extrusion Laminating
Yes
2 Layer Laminating
Yes
Plastic Film Laminating
Yes
Aluminum Foil Laminating
Yes
Paper Laminating
Yes
Non Woven Fabric Laminating
Yes
Laminating Speed
120m/Min
Transport Package
Wood Box
Specification
9600x8000x3250mm
Trademark
KETE
Origin
Wenzhou, Zhejiang Province, China
Production Capacity
20 Sets/ Month
Packaging & Delivery
Package Size
960.00cm * 800.00cm * 325.00cm
Package Gross Weight
1500.000kg

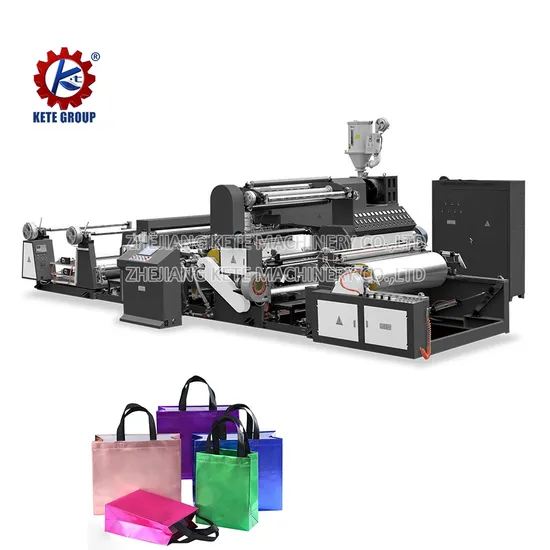

Product Description
This Extrusion Lamination Machine is suitable for using extrusion film as glue for laminating double-layer or multi-layer material. It is widely
used for food packaging and medical packaging products.
Ω.With the PLC Touch Screen System
Ω.With the Corona Treatment System
Ω.With a Water Chilling System
Ω.With Auto Filter Screen Change
| Model | KTLM-EX150 |
| Raw Material Width | 1050/1250/1350mm (41.3"/49.2"/53.2") |
| Laminating Film Resin | LDPE, PP, EVA, EAA |
| Base Material | Paper, Textile Fabric, Non Woven Fabric, Knitted Mesh |
| Interlayer Material | CPP, PE, BOPP, BOPET |
| Glue | Extrusion Resin |
| Laminating Speed | 150m/min |
| Laminating Speed | 120m/min |
| Unwind and Rewind Diameter | Φ800mm (31.2") |
| Paper Core Inner Diameter | Φ76mm (3") |
| Laminating Film Thickness | 0.01-0.11mm |
| Extrusion Output | 260kg/h |
| Total Power | 110kw |
| Machine Size (LWH) | 9600×8000×3250mm |
| Power Support | 5Lines 3 Phase 220/380/440V 50/60HZ |
