Ck5123 Large Diameter CNC Lathe Machine Single Column Vertical Lathe Machine

Product Description

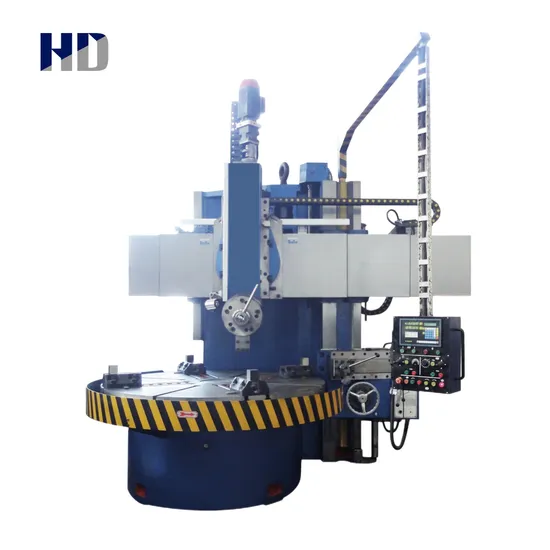

CK5123 Large Diameter CNC Single Column Vertical Lathe Machine Product Picture

Equipped with SIEMENS CNC control ( optional, FANUC and GSK), except CNC auto running mode, you can also use it in manual way.
Two configurations available, 4 steps gearbox plus AC variable motor, or 2 steps gearbox plus big torque DC stepless motor, with threading function and CSCS ( constant surface cutting speed) function
High grade casting from own foundry following by proper heat treatment.
Hardened guideway ( about HRC40). Perfect long lifetime and stable accuracy.
Beam is with the cover. Each lubrication part adopts automatic lubrication system and provide timed and quantitative centralized oil supply.
High precision gears in the gearbox ensure low noise and long lifetime. Good service, start production immediately after setup.
Specification Parameter

Specification	Unit	CK5112	CK5116	CK5120	CK5123	CK5126
Max.cutting diameter	mm	1250	1600	2000	2300	2600
Max.cutting height	mm	1000/1200	1000/1200/1400	1250	1350	1600/2000
Max.loading weight	T	3.2	5	8	8	10
Worktable diameter	mm	1000	1400	1800	2000	2250
Worktable speed range	rpm	6.3-200	5-160	3.2-100	3.2-100	2-63
Worktable step range	--	4 gears shift stepless / 2 gears shift stepless
Max.worktable torque	N.m	25000	32000	32000	32000	35000
Vertical tool post cutting force	N	20000	25000	25000	25000	25000
Vertical tool post vertical travel	mm	650	800	800	800/1000	800/1000
Vertical tool post horizontaltravel	mm	700	1050	1190	1320	1500
Turret rapid travel speed	Mm/min	2000
Tool bar size	mm	32*32/ 40*40	32*32/ 40*40	32*32/ 40*40	32*32/ 40*40	40*50/ 32*32
Crossbeam travel	mm	650/850	650/850/ 1050	850	1000	1200/1600
Beam lifting speed	mm/min	440
Machining precision	--	IT7
Positioning precision	mm	0.03
Repositioning accuracy	mm	0.015
Main motor	Kw	22	30	30	30	37
Machine weight	T	8.5/9.5	12.4/14/18	17	18	24/26
Dimension(L*W*H)	mm	2360*2280*2800	2830*2670*3010	3200*2800*3250	3210*2850*3300	3300*4000*3500
