5m3 5000L Liquid Oxygen Micro Bulk Storage Tank Solution

Product Description

More efficient than cylinders. More affordable than bulk.Micro bulk

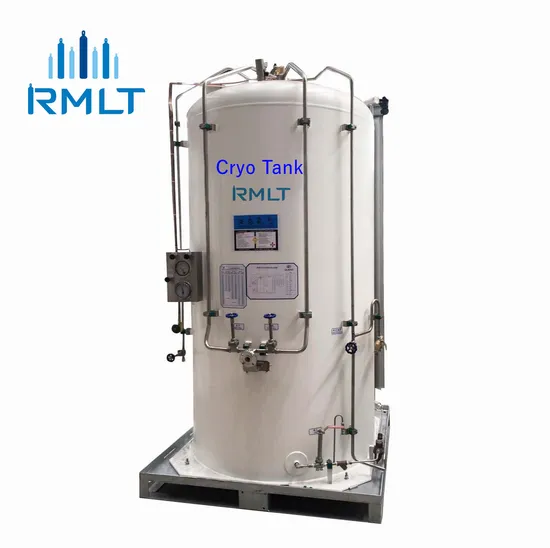

The micro bulk tank is a compact jacket-type vacuum multilayer insulation (vacuum powder insulation) cryogenic pressure vessel used for storing and supplying cryogenic liquefied gases (liquid nitrogen, liquid oxygen and liquid argon, etc.) Microbulk gas system is perfect for: Welding-MIG, pulsed MIG, TIG, and laser Laboratory-mass spectrometry, gas chromatograph, biological storage, and ICP Microbulk means efficiency. Tank sizes from 450 to 10,000 liters Highly accurate programmable gauge Telemetry-ready for remote supply level monitoring Automatic truck delivery with no-loss filling process No cylinder handling or inventory management No lost gas from idle cylinders venting or residual product leftover inside cylinders Gas mixers available for blending common gas mixtures such as Ar/ CO2, Ar/O2, or any other gas mixture Product Paramenters

Product name				Micro bulk Tank
Storage medium				LO2, LN2, LAr, LNG or LCO2
Working pressure				0.86MPa ~ 3.1MPa, or as requrested.
Geometric capacity				450liters,1000 liters,2000liters,3000liters, 5000 liters, etc
Manufacturing standards				A2, C2, GC1, GB-150, ASME, U STAMP, ISO9001 : 2008
Technical para
Model					450MPS	450HPS		450VHPS	1000MPS	1000HPS	1000VHPS
Volume
Nominal capacity	L				450	450		427	1024	1024	1024
Effective volume	L				427	427		427	973	973	973
Different gas storage capacities
Oxygen	Nm³				337	337		337	768	768	768
Nitrogen	Nm³				275	275		275	626	626	626
Argon	Nm³				333	333		333	760	760	760
Carbon dioxide	Nm³				/	219		219	/	500	500
Performance
Product standards	GB150,GB18442
MAWP	MPA				1.6	2.4		3.4	1.6	2.4	3.4
Factory setting pressure	MPA				0.86	2		3.1	0.86	2	2.1
	psig				125	300		450	125	300	450
Pressure range	MPA				0.35~1.3	1.0~2.4		2.0~3.4	0.35~1.3	1.0~2.4	2.0~3.4
	psig				50~175	150~350		300~500	50~175	150~350	300~500
The rate of evaporation(Nitrogen)	%/date				1.8	1.8		1.8	0.8	0.8	0.8
Expanding supply
(Nitrogen,Oxygen,Argon)	m³/H				15	15		15	25	25	25
Carbon dioxide	m³/H				/	5.4		5.4	/	9	9
Size and weight
Diameter	mm				758	758		758	1060	1060	1060
High	mm				1706	1706		1706	2250	2250	2250
Weight	kg				354	405		450	800	995	1200
Level gauge	Differential pressure liquid level meter or digital display liquid level meter
The tray material	Carbon steel galvanized
The pallet size	mm				850*850				1200*1200
Technical para
Model					2000LP	2000MP		2000HP	2000VHP	3000LP	300MP
Volume
Nominal capacity		L			2017	2017		2017	2017	3031	3031
Effective volume		L			2000	2000		2000	2000	2880	2880
Different gas storage capacities
Oxygen		Nm³			1578	1578		1578	1578	2272	2272
Nitrogen		Nm³			1286	1286		1286	1286	1852	1852
Argon		Nm³			1562	1562		1562	1562	2249	2249
Carbon dioxide		Nm³			/	/		1028	1028	/	/
Performance
Product standards		GB150,GB18442
MAWP		MPA			0.8	1.6		2.4	3.4	0.8	1.6
Factory setting pressure		MPA			0.5	0.86		1.4	3.1	0.5	0.86
		psig			75	125		200	450	75	125
Pressure range		MPA			0.17~0.93	0.35~1.3		1.0~2.4	2.0~3.4	0.17~0.93	0.35~1.3
		psig			25~135	50~175		150~350	300~500	25~135	50~175
The rate of evaporation(Nitrogen)		%/date			0.7	0.7		0.7	0.7	0.6	0.6
Expanding supply
(Nitrogen,Oxygen,Argon)		m³/H			60	60		60	60	60	60
Carbon dioxide		m³/H			/	/		15	15	/	/
Size and weight
Diameter		mm			1262	1262		1262	1262	1466	1466
High		mm			3060	3060		3060	3060	3160	3160
Weight		kg			1345	1505		1700	935	1770	2085
Level gauge		Differential pressure liquid level meter or digital display liquid level meter
The tray material		Carbon steel galvanized
The pallet size		mm			1450*1450				1450*1450		1650*1650
Technical para
Model					3000HP	3000VHP	5000LP	5000MP	5000HP	5000VHP
Volume
Nominal capacity			L		3031	3031	4993	4993	4993	4993
Effective volume			L		2880	2880	4743	4773	4773	4773
Different gas storage capacities
Oxygen			Nm³		2272	2272	3742	3766	3766	3766
Nitrogen			Nm³		1852	1852	3050	3069	3069	3069
Argon			Nm³		2249	2249	3704	3728	3728	3728
Carbon dioxide			Nm³		1480	1480	/	/	2453	2453
Performance
Product standards			GB150,GB18442
MAWP			MPA		2.4	3.4	0.8	1.6	2.4	3.4
Factory setting pressure			MPA		1.4	3.1	0.5	0.86	1.4	3.1
			psig		200	450	75	125	200	450
Pressure range			MPA		1.0~2.4	2.0~3.4	0.17~0.93	0.35~1.3	1.0~2.4	2.0~3.4
			psig		150~350	300~500	25~135	50~175	150~350	300~500
The rate of evaporation(Nitrogen)			%/date		0.6	0.6	0.45	0.45	0.45	0.45
Expanding supply
(Nitrogen,Oxygen,Argon)			m³/H		60	60	75	75	75	75
Carbon dioxide			m³/H		15	15	/	/	18.5	18.5
Size and weight
Diameter			mm		1466	1466	1816	1816	1816	1816
High			mm		3160	3160	3265	3265	3265	3265
Weight			kg		2325	2675	2645	3115	3605	4275
Level gauge			Differential pressure liquid level meter or digital display liquid level meter
The tray material			Carbon steel galvanized
The pallet size			mm		1650*1650		2000*2000

Products Description
Features of our products
1.Pallet skip Design:Centralized gas supply system on pallets skip: collect Storage tank, PBC, Vaporizer, and pipelines. Design compact. 2.Quality Well: High vacuum multi-layer insulation and well designed structure, and no liquid loss.
3.Easy installation: can put anywhere you want on working site.
4.Easy transportation: Can lift hooks, or by forklift on movable base.
5.Easy Operation:All the data is showed on instrument, and can be adjusted according to actual situaton of gas pressure regulation.
6.Easy Maintenace: CGA Connection, which is convenient to assemble and disassemble.
7.Intelligent Equipment: taking remote liquid level and pressure supervision, can send tank liquid data to your phone.
