Self-propelled Greenhouse Scissor Picking Lifter Picking Trolley

Product Description

Self-propelled Greenhouse Scissor Picking Lifter Picking Trolley
Greenhouse picking trolley is developed on the basis of absorbing the advantages of similar products domestic
and overseas, this design is a mobile lifting equipment which has good lifting stability and wide applicability.
Mainly suitable for indoor work, due to the small size of the whole machine, it has better flexibility and mane
-uverability, and has a wide range of use areas, great liquidity.
Greenhouse picking trolley consists of six parts: working platform, scissor arm, lifting cylinder, chassis lifting
mechanism, hydraulic control system, and bottom frame.
Introductions:
1) Greenhouse picking trolley is under special agencies on the ground combined with actual needs continuous
optimization design, the fuselage use chassis of electric and hydraulic shear fork lift platform mechanism,
combining the advantages of small volume, low noise, realize stepless speed, simple structure, easy operation,
zero emission, the advantages of no pollution, is mainly used for greenhouse facilities in tomato, cucumber, the
efficiency of fruit harvesting, crop pruning, artificial pollination and other agricultural operations, work efficiency
can be increased more than 10 times.

2) The product relies on electric drive in the greenhouse track stepless speed regulation forward and backward
operation, braking, the table can realize automatic control hydraulic lifting, in the greenhouse narrow channel
operation, at the same time can realize the remote automatic remote control operation.

3) Track picking trolley is one of the necessary equipment in the cultivation and production of modern greenhouse
vegetables long plum section, in order to facilitate the pruning fork after the plant is too high. Fruit collection and
other links, the greenhouse picking trolley, can achieve accurate, fast lifting, meet any angle, height of fruit picking,
pesticide pruning, pollination and other operations, and the operation is safe and reliable.
Specifications:

Specification		SJYZ0.2-3	SJYZ0.2-4
Max platform height from ground	mm	3000	4000
Min platform height from ground	mm	590	632
Platform size	mm	1910*500	1910*500
Load capacity	kg	200	200
Min ground clearance	mm	75	75
Battery	v/Ah	2x12/80	2x12/80
Lifting motor	v/kw	12/0.8	12/0.8
Driving motor	v/kw	24/0.5	24/0.5
Driving speed	km/h	0-4	0-4
Charger	v/a	24/20A	24/20A
Overall length	mm	1936	1936
Overall width	mm	770	770
Overall height	mm	1642	1682
Machine weight	kg	490	550
Track type	Track-center distance		550
	Pipe diameter		48*4
Introductions	The electronic control is imported from the United States
	Drive motor imported from Italy
	Hydraulic unit seals imported from Japan

Advantage:
1) Ergonomic design, simple and convenient operation, equipped with foot switch, more convenient and flexible
movement.
2) Safe and reliable products, complete protective measures, the bottom is equipped with a strong safety guide
rail, with brake system, can support to equip supporting columns.
3) Flexible transfer, the bottom of the equipment is equipped with 4 flange wheels to ensure smooth movement
along the track, equipped with 4 rubber tires, so that it can drive along the cement road, greenhouse picking trolley
longitudinal forward and backward driving to achieve stepless speed regulation.
4) The lifting platform is driven by hydraulic lifting system to achieve smooth and continuous vertical lifting. The
system runs flexibly and can automatically and smoothly adjust the height. If the lifting is not used for a long time,
the main switch can be closed.
5) The equipment is equipped with two control boards, the control board on the operating table is equipped with
emergency stop switch, direction switch and speed switch, also can control the operation platform lifting and moving.
24V output power supply can be connected to the control panel for connecting fans or lighting.

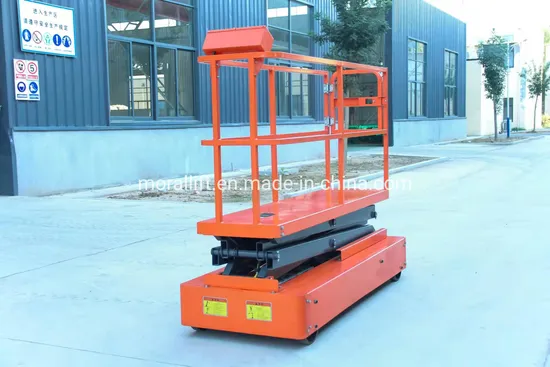

Pictures:
