Winsoar 2024 Series Vertical and Horizontal Mixing Unit/Plastic Raw Material Mixing Plastic Mixer
| US$15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WS004
Application
Granules, Liquid, Liquid with Suspended Solids, Powder
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical
Certification
CCC, CE, ISO
Condition
New
Cooling Method
Water Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
5~2000L
Mixing Drum Shape
Circular Groove
Stirring Type
Forced
Warranty
1 year
Working
High Speed Mixer
Delivery Time
30days
30days
Customizable
Motor
Siemens
Electric Parts
ABB/Siemens/Omron
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating Type
Continuous Operating
Transport Package
Seaworthy Packing
Specification
3000.00cm * 1500.00cm * 1900.00cm
Trademark
WINSOAR
Origin
China
HS Code
8477800000
Production Capacity
5000
Packaging & Delivery
Package Size
3000.00cm * 1500.00cm * 1900.00cm
Package Gross Weight
3000.000kg
Product Description

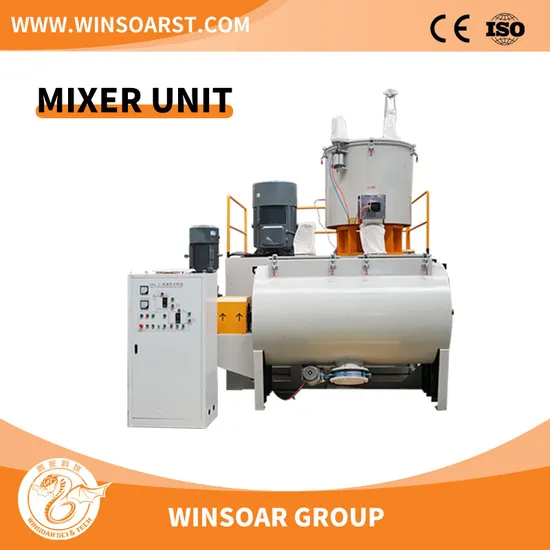

Product Description| SRL-Z series vertical type heating/cooling mixer | ||||||
| Suitable for plastics, rubber, chemical and food industry, for power or granulate material blending, coloring and drying. Typical application includes: production of PVC dry blend, filling and modification of plastics, pre-mixing of compounding process and premix of wood-plastic Composites. Features: All important parts (bow, mixing tool, control) are manufactured in our company, which ensure the quality of machine. All material in contact with product is SS304 or aluminum alloy and the product will not be contaminated. High cooling efficiency, short mixing time, easy and convenient to clean high output. Mixing tool can be designed according to different application. Mixing tool coated with wear-resistant material, which can increase service life and past dynamic and balance test, running smoothly. | ||||||
| Technical parameters of SRL-Z series vertical type heating/cooling mixer unit: | ||||||
| Model | Total volume(L) | Effective volume(L) | Motor power(kw) | Shaft speed(rpm) | Heating/cooling method | Discharging |
| SRL-Z100/200 | 100/200 | 75/160 | 12/22/7.5 | 650/1300/90 | Electrical/Water | Pneumatic |
| SRL-Z200/500 | 200/500 | 150/320 | 30/42/11 | 460/920/90 | Electrical/Water | Pneumatic |
| SRL-Z300/600 | 300/600 | 200/360 | 40/55/11 | 475/950/90 | Electrical/Water | Pneumatic |
| SRL-Z500/1000 | 500/1000 | 375/650 | 55/75/15 | 475/950/90 | Electrical/Water | Pneumatic |
| SRL-Z500/1600 | 500/1600 | 375/1200 | 55/75/18.5 | 475/950/68 | Electrical/Water | Pneumatic |
| SRL-Z800/2000 | 800/2000 | 600/1500 | 83/110/22 | 370/740/68 | Electrical/Water | Pneumatic |
