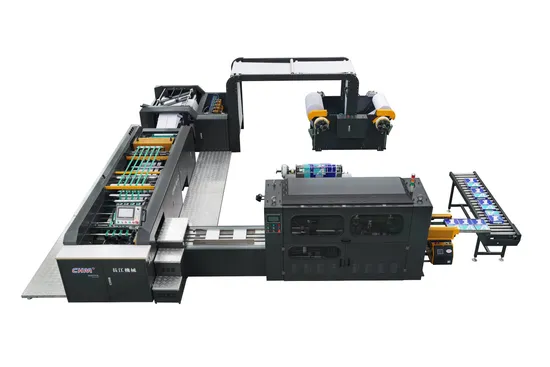

Auto A4/A3 Photocopy Paper Cutting and Packing Machine
| US$175,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CHM-A4
Type
Industrial Cutter
Blade Material
Steel
Computerized
Computerized
Certificated
CE,IEC,TUV
Transport Package
40hq
Specification
9*9meters
Trademark
CHM
Origin
China
HS Code
84411000
Production Capacity
300sets Per Year
Product Description
CHEUNG KONG MACHINERY ESTABLISH 2004 AND HAVE THREE FACTORIES IN CHINA WITH TOAL COVER 150000 SQUARE METERS
Morden FACTORY
WORK PROCUDER OF PRODUCTION LINE
A4 AND A3 SIZE CUTTING A4 SIZE PACKING A4 SIZE CARTON PACKING
FEATURE OF PRODUCT
TECHICAL DATA :
A. CHM-A4-4(pocket) Cut Size Sheeting Machine
A.1. Main Technical Parameter
| Paper Width | : | Gross width 850mm, net width 840mm |
| Cutting numbers | : | 4 cutting-A4 210mm (width) |
| Paper roll's diameter | : | Max.Ф1400mm. Min.Ф600mm |
| Paper core's diameter | : | 3"(76.2mm)or 6"(152.4mm) or according to the clients' demand |
| Packing Paper grade | : | High-grade copy paper; High-grade office paper; High grade Free Wood paper etc. |
| Paper weight | : | 60-100g/m2 |
| Sheet length | : | 297mm ( specially design for A4 paper, the cutting length is 297mm) |
| Ream amount | : | 500 sheets Max. Height: 45-55mm |
| Production speed | : | Max 0-250m/min(depends on different paper quality) |
| Max. Numbers of cutting | : | Max 841min |
| Output of the ream | : | Max 26reams/min |
| Load of cutting | : | 400g/m2 (4×100g/m2) |
| Cutting accuracy | : | ±0.2mm |
| Cutting condition | : | No variation of the speed, no break, cut all the paper at one time and need the eligible paper. |
| Main power supply | : | 3*380V /50HZ |
| Voltage | : | 220V AC /24V DC |
| Power | : | 32KW |
| Air consumption | : | 300NL/min |
| Air pressure | : | 6 bar |
| Edge cutting | : | 2×10mm |
| Safety standard | : | Design according the safety standard of China |
CHM-A4B Wrapping Machine
B.1. Main Technical Parameters:
| Paper Width | : | Gross width:310mm';net width :297mm |
| Ream packing high | : | Max 55mm ; Min 45mm |
| Packing roll dia | : | Max.1000 mm ; Min.200mm |
| Packing roll width | : | 560mm |
| Packing sheets weight | : | 70-100g/m2 |
| Packing sheets grade | : | high-grade copy paper, high-grade office paper |
| Design speed | : | Max 40reams/min |
| Operation Speed | : | Max 35 reams/min |
| Packing condition | : | no speed variations, no breaks, cut all the paper at one time and qualified packing paper. |
| Driving | : | AC servo driving |
| Main power supply | : | 3*380V /50HZ( or as required) |
| Voltage | : | 220V AC /24V DC (or as required) |
| Power | : | 18KW |
| Compressing air consumption | : | 300NL/min |
| Air pressure | : | 5bar |
