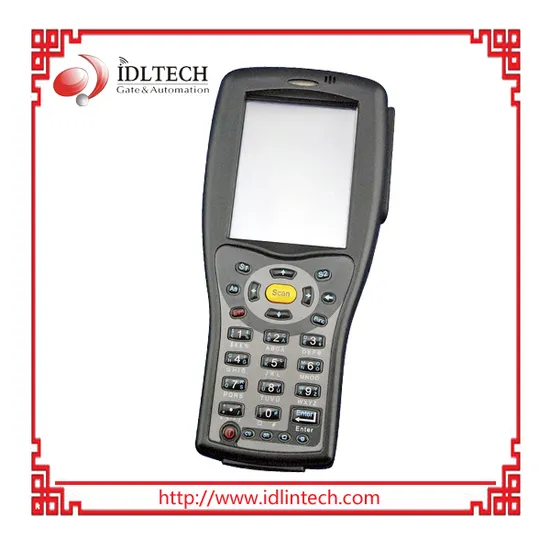

UHF Handheld Bluetooth RFID Reader with RS232/USB

Product Description

Support RFID radio frequency (UHF band) and Wi-Fi/GPRS; Integrated long-range laser barcode scanner and handwriting input.
Main Features
Support RFID radio frequency (UHF band) and Wi-Fi/GPRS;
Integrated long-range laser barcode scanner and handwriting input;
Support signature capture;
Reading distance from 0-1.2 meters;
IP54 industrial grade hardware design.
Technical Parameters
Operation System: Windows CE 5.0, multiple languages;
Processor: SAMSUNG 400MHz CPU;
Memory: ROM128MB, RAM 128MB SDRAM, Maximum 1GB;
Keyboard Function: 25+1 letter-number backlight soft keyboard, support manual input;
Standard Battery: 3.7V 2800mAh/3200mAh Li-ion rechargeable battery, inside backup battery: 17mAh;
Standard Communication: USB1.1, RS232;
Wireless Communication options: Wireless internet accord to IEEE802.11b/g Standard (11Mb/S-54Mb/S);
GSM/GPRS Communication: 900/1800/1900MHz
Audio: Built-in speaker
Information Collection: RFID, barcode scanning, touch screen, stylus;
Support RFID Protocol: UHF: EPC Gen2(ISO18000-6C), ISO18000-6B
RFID Reading Distance: 500~1200mm
Support Barcode Types: China Post Code, Code39, Code 93, Code 128, EAN-8, EAN-13, UPC, Intercross 2-5 code(optional), etc.
Dimension: 190mmx80mmx25mm;
Weight: 400g
Application
Vehicle intelligent management: Car parking lot, speed way non-stop toll, customs using, weighing automatically, etc.
Production flew-line intelligent management: Intelligent sorting of products on flew-line, etc.
Warehouse management: Cargoes in and out automatic recording, etc.
Logistics management: Container management, tray management, asset tracking, etc.
People management: In and out management at school gate, in and out management at factory gate, etc.

Operation System	Windows CE 5.0,multiple languages
Processor	SAMSUNG 400MHz CPU
Memory	ROM128MB,RAM 128MB SDRAM, Maximum 1GB
Keyboard Function	25+1 letter-number backlight soft keyboard, support manual input
Standard Battery	3.7V 2800mAh/3200mAh Li-ion rechargeable battery, inside backup battery: 17mAh
Standard Communication	USB1.1, RS232
Wireless Communication options	Wireless internet accord to IEEE802.11b/g Standard (11Mb/S-54Mb/S)
GSM/GPRS Communication	900/1800/1900MHz
Audio	Built-in speaker
Information Collection	RFID, barcode scanning, touch screen, stylus
Support RFID Protocol	UHF:EPC Gen2(ISO18000-6C), ISO18000-6B
RFID Reading Distance	500~1200mm
Support Barcode Types	China Post Code,Code39,Code 93,Code 128,EAN-8,EAN-13,UPC,Intercross 2-5 code(optional),etc.
Dimension	190mmx80mmx25mm
