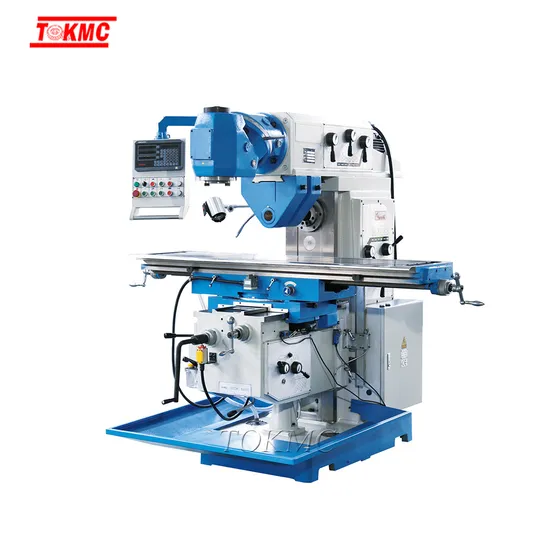

1700X400mm Hercules Super Universal Milling Machine
| US$10,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TUM1760
Structure
Bed type
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE
Condition
New
Table Size
1700X400mm
Spindle Taper
ISO50 V /H
Motor
4 Kw V/H
Transport Package
190X190X225 Cm
Specification
2650 kg
Trademark
tokmc
Origin
Tengzhou China
HS Code
84595900
Production Capacity
100 Sets/Year
Product Description
1700x400mm table size universal seivel head milling machine 3 Axis Power Feed Large Table Area Compact Design Universal Head Horizontal Milling| ITEM | TUM1760 |
| Spindle taper | ISO50(V) ISO50(H) |
| Distance from spindle to table | 30-405mm |
| Spindle speeds | 12steps 60-1700(V) r.p.m. 12steps 60-1800(H) r.p.m |
| Table size | 1700x400mm |
| Max. Rotations angle of table | ±45° |
| Table travel (X/Y/Z) | 900x400x405mm |
| Feeding travel (X/Y/Z) | 860x350x400mm |
| Feeding rang of longitudinal travel | 8steps 30~600mm/min |
| Feeding rang of cross travel | 8steps22~410mm/min |
| Feeding rang of vertical travel | 8steps 15~220mm/min |
| X-axis rapid feed speed | 1800mm/min |
| Y-axis rapid feed speed | 1300 mm/min |
| Z-axis rapid feed speed | 600mm/min |
| Feed motor | 1.5KW |
| Max. Weight of work piece | 400KGS |
| T-slot number/width/distance | 3/18mm/70mm |
| Column guide way | Rectangular guideway |
| Cross slide way of table | Rectangular guideway |
| Longitudinal slide way of table | Dovetails guideway |
| Main motor | 4KW(V ) 4KW(H) |
| Coolant pump power | 90W |
| N.W./G.W. | 2650/2850KGS |
OPTIONAL ACCESSORIES
• Standard Swivel Base Vice
• Super Open Milling Vice
• Clamp Kit
• Dividing Head
• Rotary Table
• Dividing Plates
• Drill Chuck
• 3 Jaw Chuck for Dividing Head
• Milling Collet Chuck Set
• Boring Head
• Drill Chuck
• Reducing sleeve Set
• Combination Shell End Mill Arbors
• Long Milling Arbors
• Angle Plate
