Wood Carving CNC Router Machine with 4 Axis for 3D Sculpture

Wood Carving CNC Router Machine with 4 Axis for 3D Sculpture

US$10.00 1 Piece (MOQ)

Basic Info.

CNC or Not
CNC
Voltage
380V
Product Name
Wood Carving CNC Router Machine with 4 Axis
Rotary Working Size
1000mm Diameter ; 2500mm Length
Flat Working Size
1500mm X 3000mm X 500mm
Table
Removable; T-Slot with Clamps
Spindle
9kw Air Cooling Atc Spindle
Motor and Driver
Japan Yaskawa Servo Motor and Driver
Control System
4 Axis Ncstuidio
Transport Package
Wrapped with Protection Film,Fasten by Metal Wires
Specification
4300*2700*2400mm
Trademark
CHAODA
Origin
China

Product Description

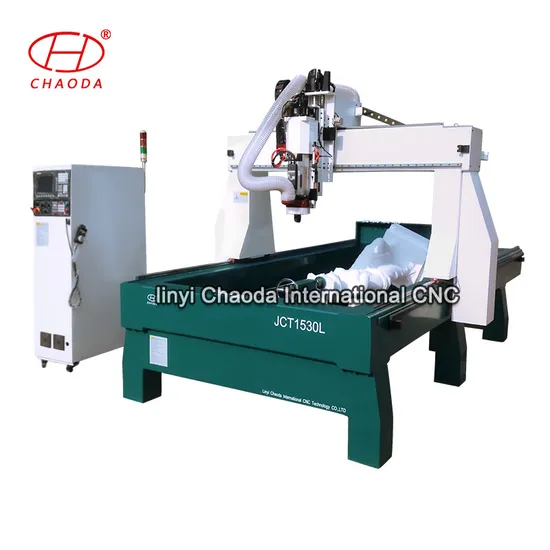

wood carving cnc router machine with 4 axis for 3d sculpture
All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Machine is with a big rotary device, can make different kinds of 3d sculptures, statues, figures, idols, landscapes, stage props, park designs, etc. Machine is with a flat table, can do deep flat works, like 3d reliefs, 3d molds, door furniture, acrylic words/letters, landscapes , etc. Advanced Ncstudio control system, very stable and easy to operate.
Model No. JCT1530L
Flat working size 1500*3000*500mm
Rotary working size 1000mm diameter, 2500mm length
Lathe bed structure T-extrusion, Thick Steel frame
Table Removable, T-slot with clamps
X structure Rack and pinion, linear square rail
Y structure Rack and pinion, linear square rail
Z structure Ball screw, linear square rail
Reposition accuracy ±0.02mm
Max. travelling speed 0-60000mm/min
Max. working speed 0-30000mm/min
Spindle 9kw air cooling ATC spindle
Tool magazine Linear type auto tool changer, 8 tools ability
Driving system Japan YASKAWA servo motor and driver
Operating system 4 axis Ncstudio with Screen
Operation language G code
Working voltage AC380V, 3-phase, 50Hz
Working materials Eps foam, Styrofoam, Woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc.

1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
