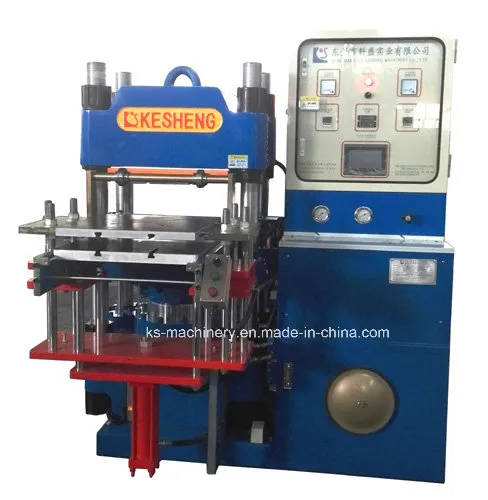

Hydraulic Hot Press Rubber Machine for Rubber Silicone Products (KS300HF)
| US$15,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
KSH-2RT-30T Single
Customized
Customized
Automatic Grade
Automatic
Structure
Double Work Stations
Clamping Force
300 Ton
Stroke
300mm
Heating Plate Size
650 X650mm
Main Sylinder Diameter
450mm
Horse Power
10HP * 2
Electrical Power
34kw
Mould Open Type
2 Layer Mould Open Style
Gross Weight
11000kg
Machine Size
3460*2630*2500mm
Transport Package
Naked Pack / Wooden Case/Customer Request
Specification
CE
Trademark
KESHENG
Origin
Dongguan China
HS Code
84774090
Production Capacity
800 Sets/Year
Product Description
300ton high precision, full automatic, fast speed hydraulic rubber machine, mainly use for rubber parts, silicone products, wrist band, phone case, toys ect.Machine main feature:
1. With proofread slow speed of mold function, proofread mold more accurate, more secure
2. Suitable for variety 2-layers or multi-layers molds, it is a kind of new multi-function machine
3. Adopt dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously
4. With adjustable slow speed of mold features to suit different types of modules
5. Out-In mold positioning accuracy, positioning 100% security, to ensure that mold does not damage
Applicable products:
Applied to industrial rubber parts, Auto parts, medical bottle stoppers, household ware, cookware, silicone/rubber multi-layer molded products
Parameter:
| Model | 100Ton | 150Ton | 200Ton | 250Ton | 300Ton | 350Ton | 400Ton | 450Ton |
| Clamping force(Ton) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Stroke(mm) | 250 | 250 | 250 | 250 | 300 | 300 | 300 | 300 |
| Heating plate size(mm) | 400x400 | 450x460 | 560x560 | 600x650 | 650x650 | 750x700 | 850x850 | 1000x1000 |
| Main cylinder diameter(mm) | 250 | 300 | 355 | 400 | 450 | 475 | 500 | 560 |
| Horse power(HP) | 5x2 | 5x2 | 10x2 | 10x2 | 10x2 | 15x2 | 15x2 | 15x2 |
| Electrical power(KW) | 12 | 17 | 22 | 34 | 34 | 43 | 48 | 72 |
| Gross weight(KG) | 4500 | 5500 | 7000 | 9000 | 11000 | 15000 | 17500 | 21500 |
| Machine size(L*W*H mm) | 2360x1650x1850 | 2650x2000x2000 | 2930x2350x2100 | 3200x2700x2500 | 3460x2630x2500 | 3650x2600x2610 | 3750x2700x2800 | 4200x3300x3300 |
Main parts instruction for plate & vacuum rubber machine
| NO. | Item | Branch/Material | Remarks |
| 1 | Motor | Taiwan Tatung | Large torque type, quiet and silent |
| 2 | Oil Pump | Japan branch | Collective style circuit design |
| 3 | PLC | Japan Mitsubishi | Independent written, easy to operate |
| 4 | LCD touch screen | Taiwan PanelMaster | Clear and intuitive, convenient, easy to operate |
| 5 | Heating pipes | Taiwan branch | Nickel-chromium alloy wire, never rust |
| 6 | Oil seal | Japan NOK | Wear-resistant, durable, no leakage |
| 7 | Solenoid valve | Taiwan Victoria | Controlled fast, long life |
| 8 | Other electrical configuration | Japan Fujitsu, Great Wall, Chint and so on | Performance and stability |
| 9 | Thermostat | Omron | Using PID correction, temperature uniform distribution, the error value at ± 3 ºC |
| 10 | Pressure sensor | Denmark TRAFAG | Conduction pressure accurate, unbiased, and easy to use |
| 11 | Heating control system | Taiwan Solid State Relays | temperature uniform distribution, the error value at ± 3 ºC |
| 12 | Machine body casting | FCD50 Ductile Iron | Aging passivation, high tensile strength |
| 13 | Column | Carbon Steel | Hardness up to HRC55--58 |
| 14 | Work plate | Size as per quotation | 45 # high carbon steel, grinding, surface nitriding hardness HRC50-55 |
| 15 | Machine Middle body | Umbrella tapered design | Make the machine rise and fall by force, the mold cavity pressure evenly, the product is not lack of material, no bubbles |
| 16 | Vacuum Pump | Germany Busch | Evacuated quickly, can reach 760 mm Hg within 5 seconds |
Any inquiry please feel free to contact with us, thank you for your attention!
