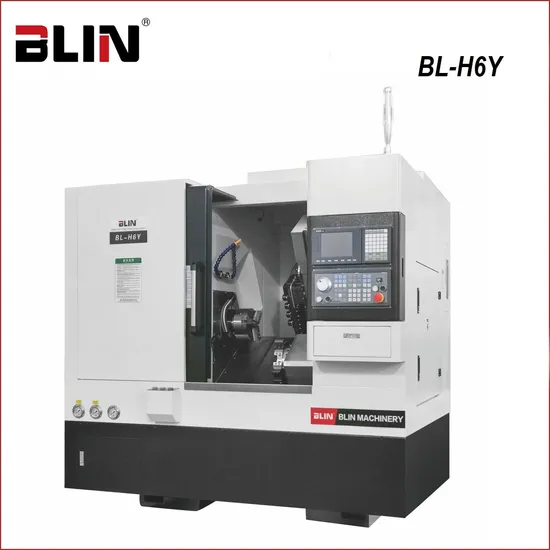

Chuck CNC Electric Blin Wooden Case 350*250mm Horizontal Lathe Machine
| US$38,000.00-41,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-H6Y
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Collet Chuck Size
6′′/8′′
Max. Swing Dia. Over Bed
Φ350mm
Max. Turning Length
250mm
Max. Turning Dia.
200mm
Spindle Bore
56/66mm
Spindle End Type
A2-5/A2-6
Spindle Speed
4500/4000rpm
Spindle Motor Power
11kw
Tool Turret Type
8t Hydraulic Tool Turret& 4+4 Independent Live Too
Positioning Accuracy(X/Y/Z)
0.008/1000mm
Repeat Positioning Accuracy(X/Y/Z)
≤0.005mm
Transport Package
Wooden Case
Specification
350*250mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
- Adopt TAIWAN technology, most parts adopt GERMANY/TAIWAN brand
- Adopt 30°mono-block slant bed design,super-heavy bed, high stability
- Adopt modularization design, easy for various especial configuration choice, such as parts catcher etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- Mount 8T hydraulic tool turret and 4+4 Independent live tools with Y axes
Details:
| Item | Specification | Unit | BL-H6Y | |
| Capacity | Collet chuck size | / | 6'' | 8'' |
| Max. swing dia. over bed | mm | Φ350 | ||
| Max. turning length | mm | 250 | ||
| Max. turning dia. | mm | Φ200 | ||
| Standard turning dia. | mm | Φ150 | ||
| Spindle | Spindle bore | Mm | Φ56 | Φ66 |
| Spindle end type | / | A2-5 | A2-6 | |
| Spindle speed | rpm | 4500 | 4000 | |
| Max. bar through dia. | mm | 44 | 51 | |
| Spindle motor power | kw | 11 | ||
| X/Z axes | X/Y/Z axes linear guideway width | mm | 30/30/30 | |
| X,Y,Z axes ball screw O.D./Pitch | mm | Φ32/10,Φ25/10,Φ32/10 | ||
| X axes travel | mm | 350 | ||
| Y axes travel | mm | 220 | ||
| Z axes travel | mm | 300 | ||
| X/Y/Z axes rapid moving speed | m/min | 24/16/24 | ||
| Tool turret | Tool turret type | / | 8T Hydraulic tool turret& 4+4 Independent live tool group with Y axes | |
| Live tool collet size | / | ER25 | ||
| Live tool speed | rpm | 3000 | ||
| Tool shank size | mm | 20×20, Φ25 | ||
| Tailstock | Tailstock | / | N/A | |
| Accuracy | Positioning accuracy(X/Y/Z) | mm | 0.008/1000 | |
| Repeat positioning accuracy(X/Y/Z) | mm | ≤0.005 | ||
| Others | Overall size | mm | 2270×1940×2070 | |
| N.W. | kg | 3000 | ||
Main parts list:
| Item | Brand |
| Spindle unit | TAIWAN-ROYAL |
| magnet ring encoder | TAIWAN-SYNTEC |
| Brake system | JAPAN-SANYO |
| Tool turret | TAIWAN-GSA/YULIN/SWIFT |
| Live tool group | CHINA top |
| Ball screw | TAIWAN-HIWIN C3 class |
| Ball screw bearing | GERMANY-FAG |
| Linear guideway | TAIWAN HIWIN |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder | TAIWAN-AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Heat exchanger | Joint-venture |
| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration:
-SYNTEC 21TB CNC controller
-Hydraulic collet chuck
-8T hydraulic tool turret
-4+4 Independent live tool group with Y axes
Optional configuration:
-FANUC 0i TF CNC controller
-Automatic chip conveyor
-Parts catcher
-Bar feeder
Other models choice:
