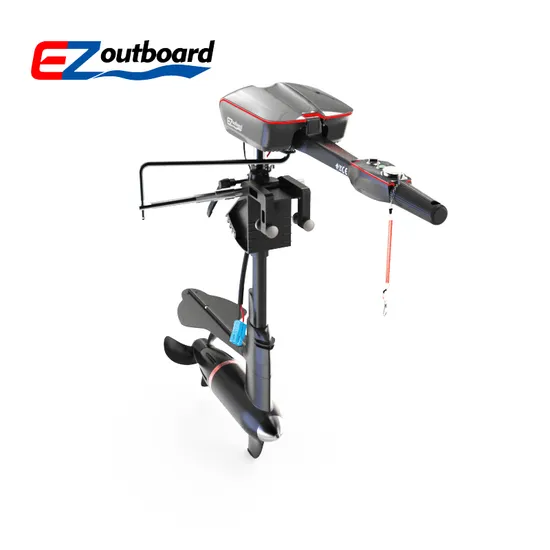

20HP EZ outboard electric outboard with remote control

Product Description

Elevate Your Boat Experience with Our Groundbreaking Electric Outboards Ready for Maintenance-Free, Non-Stop Commercial Operation
Powerful . Reliable . Compact . Efficient . Quiet . Affordable ... Product Description
EZ outboards are 48V by default, but 72V systems are also available by request
Imagine a boating experience where power meets simplicity, efficiency blends with innovation, and every journey becomes an eco-friendly adventure. We're excited to introduce the EZ Outboards - a leap forward in electric propulsion technology, meticulously crafted for your small boat. EZ Outboards is more than just an outboard motor; it's a testament to advanced marine engineering designed to revolutionize your time on the water.

Key Features of the EZ outboards: Direct Drive Underwater Motor: For quiet, efficient propulsion. Hermetic Seal: Total protection from water leakage, ensuring long-term durability. Contactless Electro-Magnetic Transmission: High-efficiency power transfer with reduced wear. Modular Design: Simplistic and user-friendly for quick installation and maintenance. Sinewave Control: Smooth acceleration and handling. Lightweight and Portable: Easy to transport, ideal for recreational and professional use. Super Durability: Designed for the rigors of commercial applications.
Product Usage

Product Model	EZ-X05	EZ-X10	EZ-X20
Rated Voltage(VDC)	48	48	48
Input Current(A)	65	135	220
Input Power(KW)	3.1	6.5	10.5
Comparable Petro Engine(HP)	5	10	20
Maximum Propeller Speed(rpm)	2000	2600	2400
Static Thrust Force(lb)	130	185	225
Propeller Size(inch)	10*7	10*7	10*10
Net Weight(kg)	20	26	29
Control	Tiller/Remote	Tiller/Remote	Tiller/Remote
Tilting	Manual	Manual	Manual

MOX9 Hermetic Marine Motor
No Brush. No Speed Reduction Gear. No Moving Seal. Less is More.
Our latest X-series EZoutboards are now powered by the all-new patented Goldenmotor MOX9 Gearless & Brushless DC motor. 9 years of research and development spent in the pursuit of a brushless and gearless design has finally paid off. Now you can say goodbye to unwanted friction & weight and say hello to free extra mileage. Rated at IE5 (Ultra-Premium Efficiency), the MOX-9 motors will squeeze more miles out of your battery pack. The controller is placed inside top box and the underwater drive motor is completely hermetic to prevent any possible water leakage, your most valuable components of the outboard are then well protected from damage!!!

Contact-less Transmission No Vertical Drive Shaft. No Bevel Gear. No Water Pump. 20,000 Hours Guaranteed. We thought you'd love to spend more time boating and less time doing maintenance, so we took water seals out of the equation. The MOX9 Marine Motor is designed to last up to (and probably more than) 20,000 hours maintenance free. BUT HOW? Introducing our revolutionary patented MAGPROP™ technology, our MAGPROPs are driven via electro-magnetic induction, enabling our motors to become truly seal-less and maintenance-free, good for Non-Stop Commercial Use.
Swift & Silent
Hi-Speed. Low Noise.
With up to 30 horsepower and shaft speeds of up to 2600 RPM at your disposal, the X-series will get you where you want, except much faster. Our propellers are designed to be able to handle all that power while also being extremely efficient. Don't want to scare the fishes away? Our MOX9 motors are manufactured with high precision machinery, remaining ultra-silent even on full throttle SportMode, they'll never hear you coming.
Need More Power
Add more. Link it. Get more.
Got a bigger boat? Need more speed? We've got you covered. Achieve up to 120 horsepower (4*30HP) by simply linking up to 4 EZoutboard X-series in parallel drive with our new EZlink scalable interface. To maximize power efficiency, simply switch between single-drive EcoMode or multi-drive SportMode with the push of a button. EZlink gives you the ultimate flexibility by allowing you to selectively power up or down individual outboards, without ever going through the trouble of physically un-linking them.

Zero Emissions
Clean Water. Happy fish.
Now that the world is more aware of environmental protection, electric propulsion has undeniably become more relevant than ever. Goldenmotor products are developed with nature's best interests in mind. We love our planet, and we invite you to join us in the push towards a cleaner and more sustainable environment for ourselves and posterity. Choose electric, make a difference, switch to the EZoutboard X-series today!
(E for Electric Propulsion,Z for Zero Pollution,EZalso for Ease of Use)is our new brand name for our innovative electric outboards (international patented). Our patented Gear-less, Brushless, Shaft-less design makes it very unique, highly efficient, reliable, quiet, light, and cost saving. The BLDC motors and controllers are optimally designed for electric outboards use with motor speeds (2000rpm-2800rpm) matching to common propeller speed, so you can get the same boat speeds as by gasoline outboards with equivalent horse powers. The motor controllers use sinewave technology guaranteed smoothness control, and programmable via PC or smartphones to setup speed limit, maximum current, lower voltage limit as you wish to meet your needs and local authority's regulations, whether 9.9HP or 10HP, you can program it!
All EZ outboards support both tiller steering control, and remote steering control via teleflex cable same way as used in gasoline outboards. Any single outboard readily caters for both control methods. You can choose either control method at the same price!

Learn to Operate It in Minutes! Smooth Control Assured.
Other Features: Pursuit of Speed, Sports Experience
Propeller speeds are comparable to conventional gasoline/diesel outboards. High-power high-efficiency brushless DC drive motor (3KW-20KW) provides strong continuous thrust GEAR-LESS design, no speed reduction mechanism, making the design more concise, quiet, durable, and energy-saving Remote/Tiller control compatible interface, users can freely choose/switch control modes 3-speed selectable modes: Sports / Cruise / Eco power saving, suitable for different use scenarios, to achieve a multi-purpose FREE smartphone dashboard APPs, available in both Android and iOS versions
Support for any 48VDC battery systems, users can choose local battery suppliers and capacities to meet your needs Support CAN-BUS, Blue-tooth communication protocols, and open for customer's own application development The prices are equivalent to the four-stroke gasoline engine, affordable, and truly create values for users How do I determine the capacity of the battery pack needed?
Battery is the new form of "fuel" for electric propulsion outboards, you never need to go to gasoline station to refuel your outboard anymore. You only need to recharge your batteries at home or docking place.
Once you've chosen an electric outboard that properly fits the weight and efficiency of your loaded boat, the next task is to size the battery bank that will store the energy to drive it. The size of the battery bank will depend on the amp draw you plan to regularly place upon it and the range of miles you desire to travel. It is not easy to know the current draw before you try it as each boat is diffrent from others in hull shape, length, load, speed and daily operation hour you want, not like electric cars which is fixed for each car model in factory. Our expandable battery modules will make your life much easier to determine how big the battery bank you need to meet your purpose. You can just buy one battery module first to test boat performance with electric propel outboard and find out accurate amp draw for your special boat setup in diffrent speed. After initial boat testing, then you can easily figure out how many such battery modules required to get the boat speed and travel duration you want. You can easily parallel link up to 4 expandable battery modules to form a larger capacity battery bank by using our Scalable Battery Hub (QuadCell, see product photo below). You can use two such hubs to link up to 8 battery modules. Each battery module is light weight for one person to carry around. Each module has its own battery management system (built-in BMS) and charger. We have developed two models of battery module for different electric boats, 48V30AH and 48V50AH. Their features and functions are basically same except they have different capacities. All have its built-in LED meter. Product Name: QuadCell We choose the most safe LiFePO4 battery type for our expandable battery modules, the materials used inside battery cell will not
cause any fire or explosion. The quality of cell is very consistent and can last more than 2000 charging cycles. Its C-rating is 3
times, that means a single 48V50AH module can output 150A Continuously. That's why you can buy just one or two battery modules
first, to test the outboard motor performance and get amperage to calculate before you know the exact battery capacity you need. For example, your trial boat testing shows you the motor current drawn from battery module is around 65A, if you need to operate your boat for 3 hours, then you need 65A*3H=195Ah battery capacity to meet your minimum requirements, this tells that you have to buy 4 sets of 48V50AH (4*50Ah=200Ah) battery modules all together.
Why we choose 48V system for outboard motor and battery pack, because it is safe for human and easy to pass local government safety regulations. But we also offer 72V version outboards upon request.
Of course, you can always buy other type of batteries from third party suppliers you can find locally, as long as its output voltage is 48V, and capacity is enough to drive the electric outboards. Buy Accessories for Teleflex/Remote Control: Teleflex Cabling Set, Stainless Steering Wheel, Remote Control Joystick Set
Customer photos
Company Profile
FAQ
Q: How Far / How Long can I drive with this motor ?
A: It depends on the battery you will use, and the design of your boat. So you must test it by yourself.
Q: What is the speed can it drive ? A: It depends on the design of your boat. We tested it with 4.5m boat and can reach 15KMH.
Q: Can you ship the good to my country ?
A: Yes, we can ship the Samples by Express(DHL, FedEx and so on) to your door.
For big orders, we ship by sea to your sea port.
Q: What is the delivery time ? A: For samples orders, it will take 1-2 weeks to ship your order. For bulk order, it will take 3-4 weeks to ship it.
Q: What is the shipping time ?
A: Delivery by Express will take 3-5 working days to reach your door. Delivery by sea will take 15-35 days to reach your port.
Q: What is the payment method ?
A: We accept Paypal, TT(Bank Transfer), Western Union, L/C...
Q: How can I make the order ?
A: You can make the order online through ******. You can also contact our sales to order it. Our sales will offer you the invoice and after-sale service.
Q: How can I distribute your EZ-Outboards ?
A: You need to make an initial order of 10000 USD and collect 5 PCS EZ outboards at least to become our official distributor. And we will make a distributor agreement with you.
Q: Do you offer warranty ?
A: Yes, we will offer 18 months warranty for our EZ-outboards. Packaging & Shipping

Remote Control

Tiller Control
