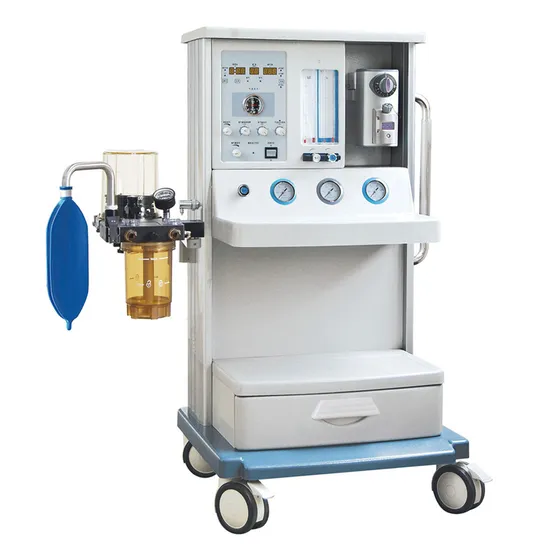

Surgical Equipment HA-3200A Trolley Anesthesia Ventilator Machine
Technical specification

Ventilator
Drive method	Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Tidal volume	Adjustable range: 50-1500 ml, Display range: 0-2000 ml
Respiratory rate	1-99 bpm
Operating modes	Manual, Standby, Intermittent Positive Pressure Ventilation (IPPV), Synchronized Intermittent Positive Pressure Ventilation (SIPPV), Intermittent Mandatory Ventilation (IMV), Synchronized Intermittent Mandatory Ventilation (SIMV)
Pressure range	5-60 hPa
Pressure trigger	-10-10 cmH20 (electronically controlled)
SIMV Rate	1-20 bpm
Inspiration/Expiration ratio (:E)	4:1-1:10 (capable of inverse ratio ventilation)
Sigh function	1 sigh breath in every 80-160 breaths
Gas System
Flowmeter	O2: 0.1-10 Lmin, N2O: 0.1-10 L/min
Fresh-gas flow	0-10 L/min
Gas supply	O2, N2O: 0.32-0.6 Mpa
O2 flush	25-75 L/min
Anesthesia Gas Scavenging System (AGSS)	Optional
Other Specifications
Monitoring	Monitorable parameters: Minute Volume (MV), Tidal Volume (VT), breathing frequency, peak pressure, spontaneous inspiration rate, airway resistance, lung compliance & power supply
Alarm	Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure & more, also features a alarm query function
Vaporizers	1 PA series (Selectatec compatible) vaporizer mount
Vaporizer concentration	0-5 %
Absorber volume	1.5L

Detailed Photos
Customer Evaluation
Company Profile
FAQ
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
