6 Way CATV Splitter 5-1000MHz (SHJ-A106S)

6 Way CATV Splitter 5-1000MHz (SHJ-A106S)

US$0.50-0.90 3,000 Pieces (MOQ)

Basic Info.

Model NO.
SHJ-A106S
Certification
CE, ISO, RoHS
Condition
New
Band
5-1000MHz
Connector
F Female
Application
Indoor CATV
Interface
6 Way
Transport Package
Strong Carton
Specification
CE, Rohs
Trademark
OEM
Origin
Changzhou, China
HS Code
8529109090
Production Capacity
100000PCS/Month

Product Description

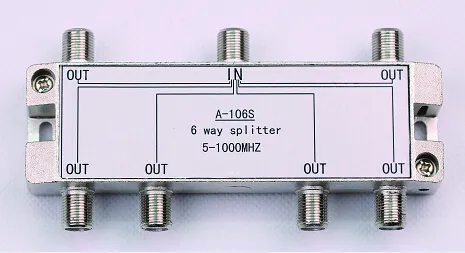

6 Way 5-1000MHZ CATV Splitter
Features:
1. Suitable for 5-1000MHz CATV wide band.
2. Zinc-die-cast housing and nickel-plated, For high shielding.
3. Indoor using, With low insertion loss, high isolation and high reflection.
4. High quality component and professional design
5. Connectors:"F"type female,75ohm.

Specification:
Item Frequency
Range		 2 Way 3 Way
(unbalance)		 3 Way
(balance)		 4 Way 6 Way 8 Way
Insertion
Loss
(IN-OUT)		 5-47MHz ≤3.3 ≤3.3\≤6.5 ≤5.2 ≤6.5 ≤9.2 ≤10.2
47-470MHz ≤3.5 ≤3.5\≤7.0 ≤5.5 ≤7.0 ≤9.7 ≤10.8
470-860MHz ≤3.8 ≤3.6\≤7.5 ≤5.8 ≤7.5 ≤10.5 ≤11.8
860-1000MHz ≤4.0 ≤3.9\≤7.8 ≤6.2 ≤7.8 ≤11.0 ≤12.2
Isolation
(OUT-OUT)		 5-47MHz ≥25 ≥25 ≥25 ≥25 ≥25 ≥25
47-470MHz ≥28 ≥28 ≥28 ≥28 ≥28 ≥28
470-860MHz ≥28 ≥28 ≥28 ≥28 ≥28 ≥28
860-1000MHz ≥26 ≥26 ≥26 ≥26 ≥26 ≥26
Return
Loss
(IN)		 5-47MHz ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
47-470MHz ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
470-860MHz ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
860-1000MHz ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
Return
Loss
(OUT)		 5-47MHz ≥22 ≥22 ≥22 ≥22 ≥22 ≥22
47-470MHz ≥25 ≥25 ≥25 ≥25 ≥25 ≥25
470-860MHz ≥22 ≥22 ≥22 ≥22 ≥22 ≥22
860-1000MHz ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
