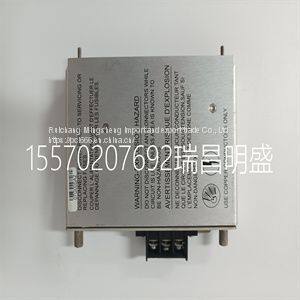

Power module 125840-01

Product Details

Product Description

Product Description
Focus on DCS, PLC, robot control system and large servo system.
Main products: various modules / cards, controllers, touch screens, servo drivers.
Advantages: supply of imported original products, professional production parts,
Fast delivery, accurate delivery time,
The main brands include ABB Bailey, Ge / fuanc, Foxboro, Invensys Triconex, Bently, A-B Rockwell, Emerson, ovation, Motorola, xyvom, Honeywell, Rexroth, KUKA, Ni, Deif, Yokogawa, Woodward, Ryan, Schneider, Yaskawa, Moog, prosoft and other brands
Power module125840-01

125800-01

Due to the potential for varying voltage levels, please review the following: • 3500 monitors ordered with hazardous approvals options (01 & - 02) are certified to Division 2/Zone 2 standards (including ATEX/IECEx and North American Zones and Divisions). The Division 2 /Zone 2 standards specify increased spacing requirements at higher voltages, and the 3500/32M relays do not meet these spacing requirements. For this reason, 3500/32M relays ordered with the hazardous area approvals options (including country-specific hazardous area approvals options) have historically been limited to a lower voltage than those ordered with non-hazardous approvals options. Using higher voltages would violate the hazardous area certificates associated with the hazardous area approvals option. • If the 3500/32M is part of a functional safety (SIL) system, the functional safety certificate requires the restricted voltage. Higher voltages are not allowed for functional safety (SIL) systems. • It is possible to connect field wiring to the 3500/32M relays such that conductors are exposed to potential human contact. This could present a shock hazard at high voltages. Customers shall only use the 3500/32M relays at the voltages specified. Appropriate safety precautions must be taken with respect to the shock hazard. 3/7 3500/32M 4-Channel Relay Module Datasheet 141533 Rev. T Compliance and Certifications FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: l This device may not cause harmful interference. l This device must accept any interference received, including interference that may cause undesired operation. EMC European Community Directive: EMC Directive 2014/30/EU Standards: EN 61000-6-2 Immunity for Industrial Environments EN 61000-6-4 Emissions for Industrial Environments Electrical Safety European Community Directive: LV Directive 2014/35/EU Standards: EN 61010-1 RoHS European Community Directive: RoHS Directive 2011/65/EU Maritime ABS - Marine and Offshore Applications DNV GL Rules for Classification – Ships, Offshore Units, and High Speed and Light Craft Hazardous Area Approvals For the detailed listing of country and product specific approvals, refer to the Approvals Quick Reference Guide (108M1756) available from . CSA/NRTL/C Class I, Zone 2: AEx/Ex nA nC ic IIC T4 Gc; Class I, Zone 2: AEx/Ex ec nC ic IIC T4 Gc; Class I, Division 2, Groups A, B, C, and D; T4 @ Ta= -20˚C to +65˚C (-4˚F to +149˚F) When installed per drawing 149243 or 149244. ATEX/IECEx II 3 G Ex nA nC ic IIC T4 Gc Ex ec nC ic IIC T4/T5 Gc T4 @ Ta= -20˚C to +65˚C (-4˚F to +149˚F) When installed per drawing 149243 or 149244.
