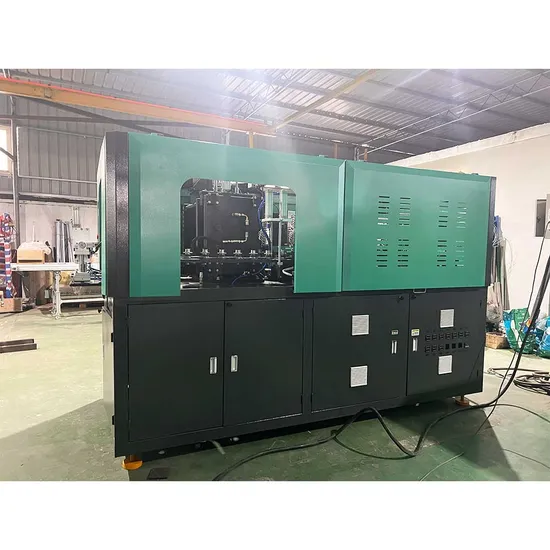

Automatic 4 Cavity 1500ml Bottle Molding Machine

Product Description

Product Description

Features/ Bottle molding machine
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: less than 0.3percent. Detailed Photos

Item		GM-4C
Bottle type specification	Cavity	4
	Theory output	3000-4500
	Max.volume	2L
	Bottle mouth maximum overall diameter	28-38mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1.25KW
	Maximum heating power	40KW
	All electric machine installation	43KW
	Actual consumption	21.5KW
Air pressure specification	Work pressure	7-9kg/ cm2
	Low-pressure gas consumption	1600L/min
	Blow bottle pressure	25-35kg/c
	Higher -pressure gas consumption	3000Ltr/min
Frozen water specification	Work pressure	5-6 kg/c
	Temperature range	10ºC
	Consumption	8000kcal/hr
	Frozen water flow	88L/min
Machine specification	Size of the machine	4.5x1.6x1.9
	Weight of the machine	3.5ton

FAQ:
Delivery time : 35-45working days after recieved the bottle and cap samples
install machine need 7-15working days
we offer the drawing free according to the users workshop
Packing:wooden case ,film, wooden block
warranty :12months after the machine out factory.
layout design:free
voltage ,can be according to the client request.
Install service :we have the engineers for helping the machine assembling in user's workshop .
Need user's offer engineer tickets and 80-100USD/Day/Person
Preparation work for users: electrical source ,water source, air source and machines in the place should be ready when the engineer start the travel .
