X6036 Universal Milling Machine with Rotary Table with Vertical Milling Head

Product Description

Product Description
X6036 universal milling machine with rotary table with vertical milling head
1.Finely graduated feeds in all axis, driven by servo motor, it is a patent product in our company.
2.Complete with rapid feed in x-, y- and z-axis to reduce downtime
3.Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance
Fast delivery . Welcome your inquiry !!!

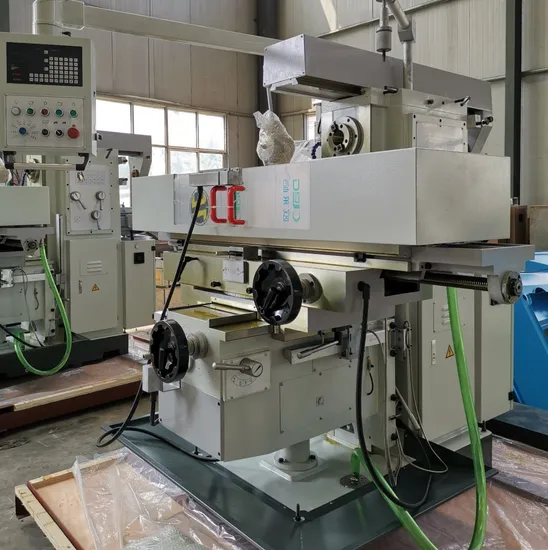

Detailed Photos
The XL6036 series milling machines are universal machines that are capable of diverse machining, like drilling, reaming, milling and boring.
Featuring optimum structure, easy operation and less maintenance, the machine can also be equipped with DRO system for higher positioning and efficiency in batch production.

The machines have a wide application for single-piece or small batch production in manufacturing, instruments, construction, maintenance and repair workshops and so like industries.
Optionals:

Product Parameters

Specification	Unit	XL6036		XL6036C			XL6036CL
Spindle taper	-	7:24 ISO50
Distance between spindle nose and table	mm	20-480		20-470
Distance from spindle axis to arm	mm	175
Spindle speed range	-	12steps 60~1800r.p.m
Table size	mm	1325X360			1600X360
Table travel(X/Y/Z)	mm	750/320/460		1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30-750 / 20-500 / 15-375
Table rapid speed (X/Y/Z)	mm/min	1200/800/600
T-slots(NO:/width/pitch)	mm	3/18/80
Arm travel	mm	500
Main motor power	kw	5.5
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1800X2100X1870	2245X2100X1870			2520X2100X1870
Net weight	kg	2450	2515			2560

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Machine packed with plywood case and steel pallet.
Certifications

In 2002, we passed the ISO9001 quality guarantee system certification, and got the certificate of CE in 2007.

Company Profile

Shandong XILI Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.Hope we can built long-term business relationship with you.
Our customers
Welcome your visit our company Shandong XILI Machine Tool Co.,LTD./Tengzhou XILI Machine Tool Co.,LTD.
Address: Xingteng road, industrial area Tengzhou city, Shandong province, China.
Shanghai Exhibition Beijing Exhibition Germany EMO Hanover
FAQ
1. What is the MOQ ?
Our minimum order quantity is 1 set.
2. What is the payment term ?
T/T, 30% advance payment before machine production, 70% balance payment before machine delivery.
30% T/T advance payment, and 70% balance payment by Irrevocable LC at sight.
3. What is your trade terms ?
FOB, CIF, CFR,EX Work.....all are acceptable.
4. How long is the guarantee ?
12 month after machine delivery from factory.
5. How can i start the order ?
You could contact here in made in China, or contact by


If you need any further information, feel free to contact us.
