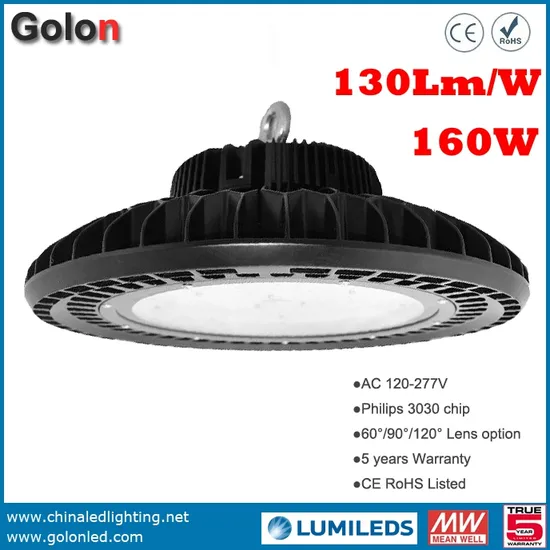

60 90 120 Degree Bright 130lm/W IP65 Wateproof High Power LED Spotlight 150W

Product Description

60 90 120 degree bright 130Lm/W IP65 wateproof high power LED spotlight 150W
High bay LED industrial light Specifications:

Product description: 130Lm/W 150W 160w high power LED spotlight
Item no.:		GL-UHB-01/02/03/04 D
Light	LED Type	Lumileds SMD3030
	Luminous Efficiency	130Lm/W
	CCT(K)	3000K / 4000K / 5000K / 5700K / 6500K
	CRI	> Ra80
	Power Supply	Meanwell HBG / UL TUV CE Driver
	Lifespan (Hrs)	> 50,000Hours
Electricity	Input Voltage(V)	100-277VAC 50/60Hz
	Dimming function	Three in one(1-10V,PWM,Resistance)
	Power Consumption(W)	240W/200W/160W/100W ±2W
	Sensor control	Motion / Photocell sensor
	Beam angle	60° / 90°(anti glare) / 120° clear cover
	Replacement	Metal Halide / HPS / HID / Halogen lamps
Structure	Materials	Aluminum housing + PC lens
	Base(Standard Design)	3 cores outlet +US/EU/US/AU plug
	Protection Grade	IP65 waterproof
Certificate	CE RoHS 5 years warranty

high power LED spotlight Product description:
Three in one dimming function (1~10Vdc or PWM signal or resistance)
Microwave sensor / Day light/Photocell sensor option
Black Fin aluminum housing, lighter and compact heat sink, saving freight cost & easier installation;
Super bright: 130Lm/W high lumens efficiency; the best energy saving;
With Lumileds 3030 LED, Ra80;
External meanwell driver, offer 5 years warranty, remarkable performance, top quality;
IP65 waterproof for indoor / outdoor application
Ring/Hook haning ceiling / adjustable bracket mouting;
high power LED spotlight More details:

Model	GL-UHB-01D	GL-UHB-02	GL-UHB-03	GL-UHB-04
LED Light Source	315pcs 3030	315pcs 3030	210pcs 3030	133pcs 3030
Bulb Watt	240W	200W	160W	100W
Input Voltage	100-277VAC	100-277VAC	100-277VAC	100-277VAC

GOLON high power LED spotlight applications:
GOLON LED light series:
GOLON High bay LED stadium lighting Package:
1pc/carton

Model	Power	Lumens (Lm)	Replacement	Lamp size (mm)	N.W/pc (Kg)	G.W/CTN (Kg)	CTN size(cm)
GL-UHB-01D	240W	31200	800-1000W	Φ400*196mm	6.5	8.1	47*47*24
GL-UHB-02D	200W	26000	600-800W	Φ400*196mm	6.5	8.1	47*47*24
GL-UHB-03D	160W	20800	500-600W	Φ340*187mm	4.93	5.93	41*41*23
GL-UHB-04D	100W	13000	400-500W	Φ280*185mm	3.78	4.33	35*35*23

60 90 120 degree bright 130Lm/W IP65 wateproof high power LED spotlight 150W
High power LED spotlight indoor & outdoor Application:
Widely used in shopping mall, exhibition hall, parking lot, playground,
gymnasium, billboards, park, sculpture, national green lighting project,
building facade and public corridor, stair corridor and other indoor and outdoor lighting

GOLON Services
1. Any inquiries, will be replied in 24hrs.
2. All your inquiries will be well explained by our experienced staff.
3. All after sale problems will be deal with in 24hrs.
4. OEM, ODM welcomed.
5. Distributorship is available for your unique design and some our current models.
6. We will keep secret for customer sale area,design ideas and all other private information.
7. Offer 5 years warranty.
8. Lighting design for free --- Provide IES file, Dialux lighting design & solution.
Golon Electric Technology Co. Ltd.
golon2010.en.made-in-china.com golon2010.en.made-in-china.com golon2010.en.made-in-china.com
Unit price is negotiable, any need of high power LED spotlight 240W 200W 160W 150W 100W option. Just contact with us, will reply in 24hrs.
