Hot Sale ICU Hospital Price Multi Parameter Trolley Handheld Veterinary Patient Monitor

Product Description

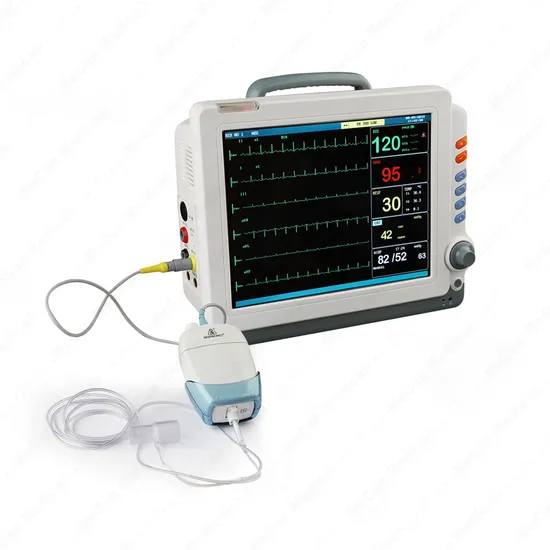

12.1 inch Multi-parameter Patient Monitor
Model: MCS0183
Features1. 12.1" color TFT LCD screen, resolution: 800*600
2. 5 kinds of interfaces: Standard/Big font/6-lead ECG/Trend gragh/OxyCRG
3. Maximum 8-channel waveforms display, the waveform color can be defined by user (7 colors)
4. 96-hour storage and review of trend graphic gram and table, 400 groups NIBP data, 1800 alarm events
5. ST and arrhythmia analysis, pacemaker analysis, drug dose calculation
6. Anti‐defibrillation design
7. NIBP over pressure protection
8. Plug‐in rechargeable battery, AC/DC available
9. Support wire or wireless network
Product DescriptionTechnique Specification

SPO2	TEMP
Measuring Range: 0 ~ 100 %	Measure and Alarm Range: 0~ 50 C
Resolution: 1%	Resolution: 0.1C
Accuracy: 70% ~ 100% (+2 %)	Accuracy: +0.1C
Pulse Rate: 20-250 BPM
Resolution: 1 BPM	RESP
Accuracy: +3 BPM	Method: Impedance between RA-LLor RAL A
	Measurement Range:
NIBP	Adult: 10 ~ 120 BrPM
Method: Oscillometry	Neonatal I Pediatric: 7 ~ 150 BrPM
Measure mode: Manual, Auto, STAT	Resolution: 1 BrPM
Unit: mmHg, kPa	Accuracy: +2 BrPM
Measure and alarm range:
Adult Mode	ECG
SYS 40 ~ 280 mmHg	Lead Mode: 5 Leads (I, II, I,, AVR, AVL ,AVF, V)
DIA:10 ~ 225 mmHg	Gain: 2 5mm/mV, 5. 0mm/mV, 10mm/mV, 20mm/mV
MEAN 20 ~ 240 mmHg	Heart Rate: 15 300 BPM (Adult); 15 350 BPM (Neonatal)
Pediatric Mode	Resolution: 1 BPM
SYS 40 ~ 220 mmHg	Accuracy: +1%
DIA 10 ~ 160 mmHg	Sensitivity >200 uV(Peak to peak)
MEAN 20 ~ 170 mmHg	ST measurement range: -2.0 ~ +2.0 mV
Neonatal Mode	Accuracy: -0 8mV~+0.8mV: +0.02mV or +10%,which is greater
SYS 40 ~ 135 mmHg	Other Range: unspecified
DIA 10 ~ 100 mmHg	Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s
MEAN 20 ~ 110 mmHg
Resolution: 1mmHg
Accuracy: +5mmHg

Standard Parameters:
ECG, RESP, TEMP, NIBP, SPO2, PR
Optinal Parameters:
Recorder ( Printer)
Central monitoring system
Dual IBP
Etco2
12-lead ECG;
Nellco SpO2;
Sun Tech NIBP.
Product Application:
Packaging & Shipping
Standard Accessories

NO.	Item	Qty
1	Main Unit	1
2	5-lead ECG cable	1
3	Disposable ECG Electrode	5
4	Adult Spo2 probe	1
5	Adult NIBP cuff	1
6	NIBP extension tube	1
7	Temperature probe	1
8	Power Cable	1
9	User Manual	1
10	Fuse	3
