Stainless Steel Weather-Resistant Electromechanical Locks for Package Delivery Lockers

Product Description

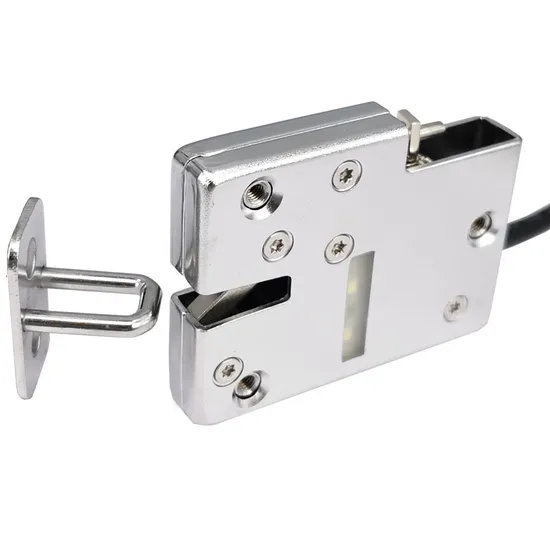

Stainless Steel Weather-Resistant Electromechanical Locks MA1208LS-T-124 features a built-in LED to offer lighting For Outdoor Package Delivery Lockers and Vending Machines. This compact electric lock allows controlled access to any cabinet, closet and drawer. An optional monitoring switch is available to indicate whether the mechanism is locked or unlocked. The cabinet lock is compatible with any access control system or standalone cabinet locking controller. It allows mechanical override for emergency open. The electronic cabinet lock is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet locking applications.

Features Available in 12VDC or 24VDC Superior heavy duty metal construction Chrome-plated steel housing Convenient mechanical override enables manually release during power failure Three-bolt regular triangle mounting enables high security and low install cost Optional internal lock switch for detecting open/close output signal Accepts access control signals from numeric keypad, RFID card, remote or fingerprint Can be fitted to Cabinets, lockers, drawers and steel furniture etc Patented Design 2 years limited warranty
Specification

Operation Voltage	12/24VDC intermittent ±10%
Power Consumption	12V DC 800mA
Operation Mode	Fail Locked
Holding Force	150KG
Maximum power on time	Less than 30 second
Solenoid	Rated for intermittence use
Cycle Rating	More than 1,000,000 times
MS Contact Rating	3A @125V
Mechanical Override	29.5mm gap
Working Temperature	-20ºC ~ +60ºC
Dimensions LxWxH	72mm*56mm*13.8mm
Gross Weight	250g
Protection Class	IP20
Compliance	CE and RoHS certificate

Applications:
The electronic cabinet lock is ideal for various applications as following:
Parcel Delivery Lockers
Smart Lockers
Vending Machine Lockers
Telecommunication Kiosks
Bank Locker Kiosks and Cash Drawers
Electronic Mailboxes
Electronic Motorcycle Trunk
Smart Bike& Scooter station Lockers
pharmaceutical cabinets, cash drawers and display cases
Beverage Freezers And Keyless Refrigerator Lockers

Package:
About Us:
Dajiang is a designer and manufacturer specializing electrified locking solutions for lockers, cabinets and kiosks. No matter size-restricted enclosures or heavy-doored metal cabinets; we can meet your particular security requirement with customized design for your applications.
Our ranges cover electronic cabinet locks, electronic drawer locks, smart parcel locker control system, vending machine control system, and IOT control hardware and software. With professional security control solution, Dajiang locks and controllers is ideal for areas of parcel locker, smart lockers, vending lockers, cash drawers; post mailboxes; medicine and archive cabinets; Key Cabinets and mailbox.
Quality control melts into the whole process and our products are completed under continuous supervise and multistage of tests. We are very proud of our product and service. We are confident you will enjoy the experience with us and appreciate all opportunity to answer any questions or provide any further information.
