hot sale series 900*1800 coal pulverizer grinding mill

Product Description

Product Description
Product Description
Product Application Of hot sale series 900*1800 coal pulverizer grinding mill
The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making
production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of
ferrous metal and non-ferrous metal, glass ceramics, etc,and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways
of discharging material
Main Features Of hot sale series 900*1800 coal pulverizer grinding mill
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Working Principle Of hot sale series 900*1800 coal pulverizer grinding mill

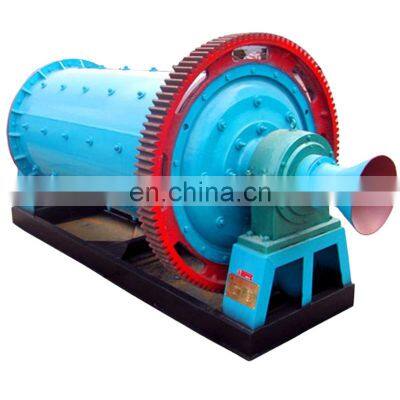

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding
chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel ball in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Certifications
Detailed Images
Name:Reducer
Ball Mill reducer. Its main role is to play a slow driver, used for fine work
Name:big gear
Rotary gear hobbing by casting process, the large gear commonly used as materials depending on the operating conditions of large gears: (1) carbon steel (2) carbon alloy steel structure (3) hardened steel (4) steel nitrided
Name:Ball mill liners
Ball mill liners have not been worn to protect the role of the main pieces of the ball mill, it is one of the main requirements of the mill liner wear-resistant. High manganese steel having sufficient impact toughness, and surface cold hardening when subjected to certain impact becomes hard wear.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
