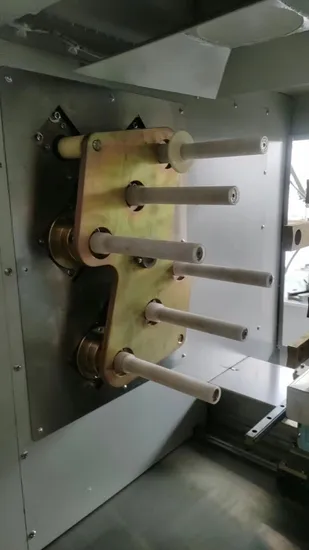

Servo Control 6 Mandrel/Shafts/Axis Rubber Gasket and Washer Machine/Cutter with Automatic Feed Device

Product Description

Product Description -Application:
Rubber Gasket Cutting Machine is used for precise cutting of kinds of rubber&silicone gasket/ washer/ring-shaped tubular product.
-Features:
1. When the cutting finishes, materials take off automatically, and through the collection boxes to gather the cut products.
2.Our Rubber Gasket Cutting Machine adopts vacuum pump, realizing powerful vacuum absorption of the pipe/tube, so ensuring the finished cut product more precise.
3. Automatic air blowing function makes loading and unloading more convenient, greatly improving the working efficiency.
4. The Rubber Gasket Cutting Machine adopts PLC+HMI touch screen control, cutting parameters are set up from the HMI,cutting recipes are aumatically stored,easy to call, making the operation very easy.
5. All electrical components, pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.
6. Use servo drive system to control the blades, compared with pneumatic control, servo control is more stable working and higher cutting precision.
Main technical data:

Model	JCM200-1	JCM200-2	JCM200-4
Spindles (mandrels)	1	2	4
Cutting efficiency	≥60 times /min	≥ 120 times /min	≥200 times /min
Working rotation speed	0─3000rpm	0─3000rpm	0─3000rpm
Cut precision	≤±0.05 mm	≤±0.05 mm	≤±0.05 mm
Cut size	Rubber diameter:ф10-150mm (2)Cut length (standard):<=140mm; Lengthened type<=350 (3)Rubber wall thickness:<=25mm	(1)Rubber diameter: ф10─120mm Cut length (standard):<=140mm; Lengthened type<=280 Rubber wall thickness: <=25mm	(1)Rubber diameter: ф10─120mm Cut length (standard):<=140mm; Lengthened type<=280 Rubber wall thickness: <=25mm
Specification of blade	blade:ф60*ф25.4x0.3	blade:ф60*ф25.4x0.3	blade:ф60*ф25.4x0.3
Compressed air	20L/min	30L/min	30L/min
Air pressure	0.5Mpa─0.8Mpa	0.5Mpa─0.8Mpa	0.5Mpa─0.8Mpa
Vacuum degree	≤-0.035Mpa	≤-0.035Mpa
Power source	AC220V±5%	AC220V±5%	AC220V±5%

Packaging & Shipping
The machine is packaged well by the stretch film first,and fixed professionally by the strong wooden case,ensuring the machine non damage during the long distance of land and sea transportation, and reach the clients factories safely.
After Sales Service We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
