Rubber Mill/Mixing Mill with Blender/ Rubber Mixing Mill with Double Motors

Product Description

Rubber Mill/Mixing Mill with Blender/ Rubber Mixing Mill with Double Motors
Product Description
This machine mainly consists of rollers , haddened teeth gearbox , electrical cabinet ,nylon bush transmission device , main motor , etc . It is widely used for mixing , warming and sheeting rubber , etc .

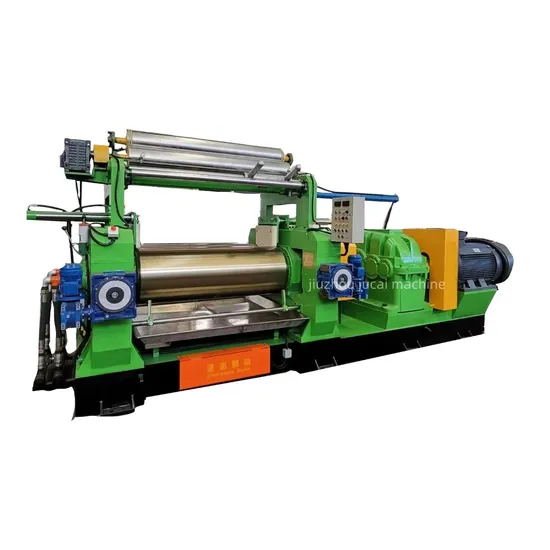

Machine Display

Machine Feature
1.The roller is made of alloy chilled cast iron .Their surfance are hard and wear resistance . Its hardness of surface is HRC68-75
2.The end of rollers are supported by the roller ball bearing bush .It has the advantages of running smoothy ,energy saving , low noise and long life
3.The roll gap adjustment is manual control type . It is simple for operation
4.The machine is equipped with overloading protection device , in order to protect the main parts from being damanged
5.The machine adopts the single drive type transmission structure . It adopts the nylon pin coupling to prevent main parts from being damanged due to the overload of transmission part
6.The base is integral type , the transmission mode is of closed transmission . so it is safe and easy for use
7.The machine is installed with the emergency button and pulling rope as the safety device
8.This machine are installed with four sets lubrication device and suitable for grease lubrication
9.The machine adopts the PLC control cabinet , the machine will be suitable for your local industrial voltage and frequency
Product Parameters

Model	XK-160	XK-250	XK-360	XK-400
roller diameter	160	250	360	400
roller length	320	620	900mm	1000
front roll linear speed	9	15.1	16.25	18.65
friction ratio	1:1.35	1:1.1	1:1.25	1:1.27
batch capacity	1-2	10-15	20-25	18-35
driving motor	5.5	18.5	30	37
machine size	1380*860*1320	3400*1350*1500	3940*1780*1740	4200*1850*1870
weight	1000 kg	3500 kg	5600	7600

model	XK-450	XK-550	XK-560
roller diameter	450mm	550mm	560/510mm
roller working length	1200mm	1500	1500
front roll linear speed	24.5	27.94	27.87
frictio ratio of roller	1:1.27	1:1.22	1:1.2
motor	55	110	90
Batch capacity	25-50	50-60	50-60
machine size	5200*2380*1770	5900*2680*2080	6500*2300*2000
machine weight	about 12000 kg	27000 kg	19500 kg

Company Profile

1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
