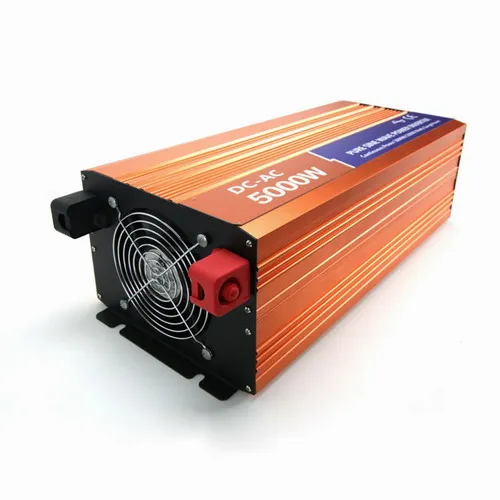

off Grid 5kw 5000W 48V 96V DC to AC Pure Sine Wave Solar Power Inverter

Product Description

SPECIFICATION
Output	Countinuous power	5000W
	Peak power	10000W
	AC voltage	100/110/120/220/230/240V AC
	Frequency	50/60 Hz
	Waveform	Pure sine wave output
Input	DC voltage	24V	48V
	DC voltage range	21-30V	40-60V
Protection at input	Low battery alarm	21±0.4V	42±0.8V
	Low battery shutdown	20±1V	40±2V
	Over voltage shut down	30±1V	60±2V
	Out-build fuses	20A*1	15A*1
Protection at input	Over temperature	The inverter will shut down when heating over 75ºC
	Over load	The inverter will shut down when the power over 360W for 10 Sec,then it will restart in senconds.
	Short circuit	The inverter will shut down when short circuit,then it will will restart in senconds.
Environment	Working temperature	Between -10ºC and +50ºC
	Working humidity	20%~90%RH non-condensing
	Storage temperature	Between -30ºC and +70ºC
Description	Dimension	500*200*150 MM
	N.W	12±0.5 KGS
Package	Packing	1PCS/CTN
	Carton dimension	720*350*260 MM
	G.W	12.8 KGS
Others	Soft Start	In 3-5 sec when start working
	USB output	5V,1A current
	Colour	Bule/Black/Silver/Red/Orange(optional)
Certificate	CE-EMC,CE-LVD,FCC,RoHs,ISO9001:2008

Main Features and Protection
1, Under-Voltage Protection(Batteries Using Life Protection): When the voltage of the batteries drops to the setting under-voltage point, the buzzer will be on, and the power will be off automatically in one minute, then the red light flashes
2, When the input voltage is higher than the overvoltage set point of the machine, the machine immediately shut down, and then red light flashes.
3, Short-Circuit Protection: When the output short-circuit phenomenon exists, the machine shut down immediately, then the red lights starts flashing.(Note: Output short-circuit will cause great harm and affect the life seriously, or even damage the machine.)
4, Over-load Protection: This machine overload protection with delay to meet some of the impact of higher current loads(such as motors, incandescent) When the load greater than output power, stopped by the degree of time delay 1-10 seconds, then the red light flashes.
5, Over-heated Protection: When the temperature reaches 40 degree the fan will be turned on automatically; when the temperature reaches (exceeds) 60 degree, the buzzer will be on and the power will be off in one minute, when the temperature exceeds 75 degree the power will be turned off at once, red light flashes.
