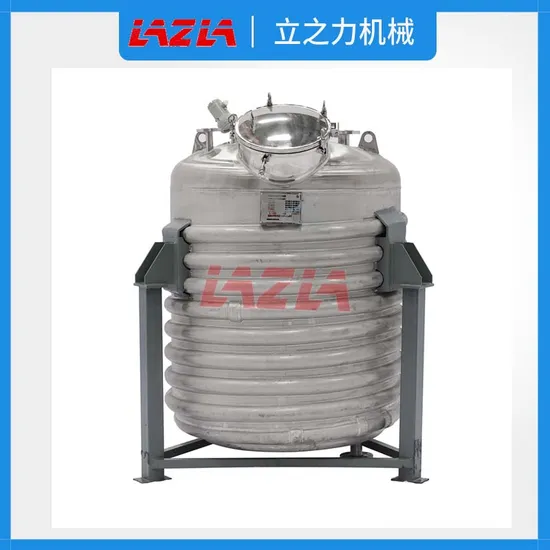

Advanced Stainless Steel Reactor with Multi-Purpose Stirring Functionality

Product Description

Key word
reactor tank
stainless steel tank
New type storage tank Reactor for manufacture shop, storage tank , stainless steel tank .
Main Body Material : Stainless Steel 304/316
Main Body Flange Material : Stainless Steel 304/316
Limpet Coils Material : Stainless Steel 304/316
Inside Cooling Coils Mat. : Stainless Steel 316L
Stirrer Solid Shaft Material :Stainless Steel 316L
Supporting Brackets : Mild Steel
Reactor usage
It is mainly used for dairy, sugar, beverage, food and other elements mixing with all kinds of drugs to stir homogeneously. And now it has been the indispensable equipment in the dairy products, beverage, and pharmaceutical factories.
Reactor characteristics
1. The insulation material is polyurethane foam or pearl cotton which is high temperature-resistant and anti-aging.
2. The interface adopts international standard ISO fast loading camp, inner pot uses imported stainless steel SUS304 or SUS306L, and its mirror-polished to Ra≤ 0.4m, outer surface adopts matte, mirror, blasting, or cold-rolled matte.
3. The seal head adopt imported sanitary mechanical agitation seal or magnetic seal agitating device, stirring speed are optional.
Technical parameters

specification	Capacity (L)		Tube Diameter (mm)		Outside dish tube heat transfer area (m2)		Power (Kw)		speed of agitator (r/min)
FP1000	1000		1100		2.867		2.2-5.5		50-80
FP1500	1500		1200		3.537		3-5.5		50-80
FP2000	2000		1300		4.165		4-7.5		50-80
FP3000	3000		1500		5.569		4-7.5		50-80
FP6000	6000		1800		10.323		5.5-15		50-80
FP10000	10000		2200		50		11-22		50-80
FP10000	20000		2400		101		11-55		50-80

Our Services:
1. We are a direct manufacturer and our priority is your complete satisfaction.
2. Logo printing: We can print any logo as per your requires on the case.
3. We take care of each order from start to finish. All emails will be answered in 1 day
4. No matter what's your order quantity, we will offer the same attention to our quality and service
5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 7 days, depending on the quantity.
6. Packages: Available for ploy bag and carton box
Detailed description of equipment for paint reactor: type of stainless steel reaction kettle Jinchangtai type FY20~30000L volume 20g 30000L) electric heating power 0) motor power 1.5-45kw) agitation speed according to requirements (rotary / sub-structure type) Closed connection form butt welding flange seal reaction kettle is the main reaction agitating equipment in chemical production. Generally there are stainless steel reactor, carbon steel reaction kettle, enamel reaction kettle and so on: 1, transmission mechanism: motor, reducer, frame, coupling, bearing, connection plate and so on. 2, reactor body: according to the capacity size and material reaction requirements design pressure to determine the thickness of the plate; the material is generally stainless steel 304stainless steel, 316L stainless steel, carbon steel, A3) or enamel; 3, heat transfer device; with jacket, inner coil, Outer disk tube, etc.; heated by organic heat carrier cycle (heat conduction oil) or steam, hot water, etc.; cooling water, freezing water, cold heat conduction oil or natural wind, etc.; 4, stirring device: agitation of propeller, anchor propeller, double propeller, etc. Turbine impeller agitation, dispersion disk, butterfly paddle, etc. 5, agitation speed: agitation speed selection according to its material agitation requirements, generally speaking, several liquid materials need to mix reaction to choose 50 rpm / min -85 rpm. If you want to disperse the powder into the liquid, the general choice is 500 rpm-1500 rpm. If oil is emulsified in water or in two incompatible liquids, 2500 rpm-3 500 r / min is generally chosen. 6, sealing device: mechanical seal, packing seal, etc. 7. reactor complete sets of equipment accessories are: high tank, drop tank, distillation column, heat exchanger, water separator, filter, etc.
