L1+L5 Dual-Band GNSS Module GPS GLONASS Beidou Galileo QZSS Module SIMCom SIM68MD

Product Description

Product Description

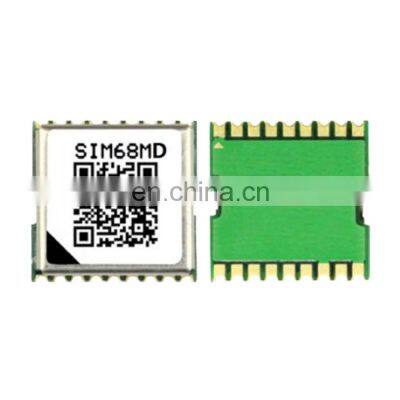

DescriptionSIM68MD● SIM68MD is a high performance and reliable GNSS module. It is a standalone L1 +L5 dual-band GNSS module in a LCC type with AIROHA’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.● SIM68MD provides simultaneous GPS, GLONASS, BeiDou , Galileo and QZSS open service L1 reception capability and GPS, BeiDou, Galileo and QZSS open service L5 reception capability. SIM68MD can acquire and track any mix of multiple satellite signals. Combining advanced AGPS called EASY™ (Embedded Assist System) with proven AlwaysLocate™ technology, SIM68MD achieves the highest performance and fully meets the industrial standard.Product Advantages● L1 and L5 dual-band GNSS receiver● Support EASYTM self-generated orbit prediction● Support EPOTM orbit prediction● Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)● Support Jamming Removing● Low-noise amplifier has been integratedProduct DetailsMechanical data• Dimensions 10.1*9.7*2.5mm• Weight 0.5gFeaturesSupport L1: BeiDou/GPS/GLONASS/Galileo/QZSSL5: BeiDou/GPS/Galileo/QZSSSupport EASYTM self-generated orbit predictionSupport EPOTM orbit predictionSupport SBAS ranging(WAAS, EGNOS, GAGAN, MSAS)Support Jamming RemovingLow-noise amplifier has been integratedSupport DGPS (RTCM)Indoor and outdoor multi-path detection and compensationLOCUSTM logger functionCertifications• TBDPerformance dataReceiver type：L1: 75SVsL5: 60SVsMax. update rate 10HzSensitivity¹：Tracking -157dBmReacquisition -151dBmCold starts -141dBmTime-To-First Fix2Cold starts 27sWarm start 25sHot starts <1sEPO Assist 13sAccuracyAutomatic Position3 1.5MSpeed4 0.1m/sOperation temperature5 -40℃~+85 ℃InterfacesSerial interfaces：UARTI2CDigital I/O:Pulse-per-second (PPS)EINT0 inputProtocols:NMEARTCMElectrical dataPower supply 2.8V~4.3VBackup power 2.3V~4.6VPower consumption2,6:Acquisition 22mATracking 22mASleep current 340uABackup 50uAAntenna type Active and passiveAntenna power External or internal VCC_RFWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
