Two-Step Melamine Impregnation Line for Decorative Paper

Product Description

Product Description The automated impregnation production line is primarily used for the gluing of base paper for decorative and fireproof panels. It can continuously and accurately process wear-resistant paper, decorative paper, kraft paper, and balance paper, completing the steps of impregnation, gluing, drying, and shearing. The raw materials include impregnated base paper and resins such as melamine-formaldehyde (MF), urea-formaldehyde (UF), and phenol-formaldehyde (PF). The final products are base papers for LPL, HPL, and CPL.
It consists of multiple equipment such as unwinder, impregnation machine, dryer, coating machine, deviation adjuster, traction machine, shearing machine, stacking device, etc. The main features are good impregnation quality, high efficiency, precise control and high degree of automation.

Product Parameters

BRAND	NTRY
TYPE	Two-step melamine paper impregnation line
PAPER	Kraft paper, decorative paper, balance paper, or wear-resistant paper
WORKING WIDTH	1500/1800/2100/2800MM
RESIN	UF/PF/MF
HEATING SOURCE	Thermal oil/gas
RESIN CONTENT	60-200%
GLUE VOLATILITY	4.5-7.5%
CUSTOMIZATI	Yes
ONON-SITE INSTALLATION	Available

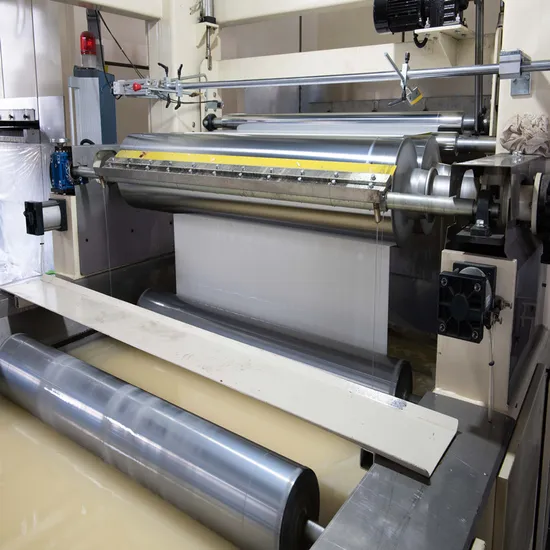

Product Images
FAQ --Who we are?
Nantong Ruiya Electromechanical provides complete solutions for the impregnation and lamination industries. Our products cover impregnation, lamination, electronic materials CCL, AL-CCL, carbon crystal plates, mica plates and other composite materials industries. We have 20 years of production and export experience, and our equipment is exported to Russia, the Middle East, India, Pakistan and other regions.

--Why choose us?
1.We will consider various factors from the perspectives of site, production volume, energy conservation and environmental protection, and provide a complete design solution.
2.We have a technical team led by 5 senior engineers to discuss and solve various technical problems in a timely manner.
3.Complete pre-sales and after-sales supply chain, supporting on-site installation.
--What we have done for customers
We are not just equipment suppliers; we have successfully helped customers in regions such as Iran and Brazil completely upgrade and modernize their factory equipment. We carefully consider your existing machinery, maximizing its integration with our systems to help you save costs and create greater value.
