ASTM D 2863 Plastics Rubber Oxygen Index tester

Product Description

Product Description

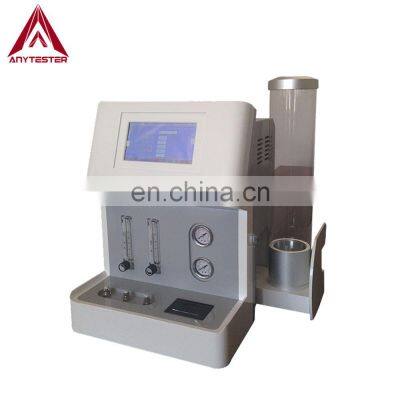

Product DescriptionAT450 Oxygen Index tester is used to determine the relative flammability of plastics and other materials by measuring the minimum oxygen concentration that will support combustion. The test specimens are burned in a precisely controlled atmosphere of nitrogen and oxygen. It can be used to determine oxygen index of plastics, rubber, fibers, foam plastics, film and textiles, etc.StandardISO 4589-2ASTM D 2863GB/T5454GB/T2406.2GB/T 10707GB/T 8924-2005Note: For more standards, please contact usSpecificationModelAT450Oxygen concentration range0~100%Oxygen concentration accuracy0.1%Combustion cylinderHeight: 450mmInner diameter: 95mmResponse time<5sInput pressure0.2～0.4MpaWorking pressure of N2 and O20.1～0.3MpaPower supplyAC220V 50Hz 50WDimensions620mm×320mm×530mmWeight30kgDetails & Features★ High Precision UK Imported Special oxygen sensor provides oxygen concentration★ The oxygen concentration is directly displayed by the digital display meter (LCD touch screen)★ Special manual igniter is safe and reliable.★ Standard air is used to automatically calibrate oxygen concentration.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions420×260×630mmWeight60kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
