Automatic Paper Sewing and Folding Machine, Automatic Book Sewing Machine Vkd-1-S

Product Description

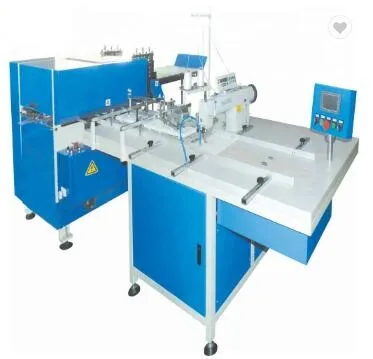

automatic sewing and book folding machine , automatic book sewing machine VKD-1-S VKD-1-S The latest sewing machine ,was researched &developed by HB independently .It is with the special design ,has the unique feature of
end -lock on both thread ends.On base of this ,it has perfectly solved the problem of thread ends loosen which normally happened on those traditional sewing machines .It is a kid of ideal &professional machine for produce exercise book ,student writing book ,note book ,account book pass port,manual , hard cover book ,sewing book ,etc Machine has functions of manual book feeding ,auto center sewing ,end lock threading ,auto thread cutting ,auto folding ,auto pressing ,auto deivery .
The finished product of this machine can hide the sewing hole from outside .The machine can take the place of the Saddle Stitching Machine ,and solve the problem of hard to binding the thick books at the same times.And no need additional book folding process .
Machine is with high automation design .PLC control system ,the most of mail electric components are all from famous brand in domestic and abroad .High production capacity ,high speed ,stable sewing performance .For sewing books ,this machine is the best choice &as necessary to need .

Model	VKD-S-1
Max.Book Size	600*470 MM
Threading Thickness	4-120 Pages ( 70 gms paper)
Working Speed	800-1800 Books/Hr
Power	220V/1 phase/ 50Hz/ 60Hz/ 5.2kW
Air supply	( User must prepare air supplier) 1.5 KW
Air pressure	6-8 bar
Machine Size	2830×1500×1500 MM
Machine Weight	580 Kg

Machine Features:
* Working Speed: 800-1800 Books/Hr
* Threading wire length can be setting freely.
* Suitable for Notebooks,Catalogue,Exercise books threading.
* Easy to operate & maintain
* Automatically threading,controlled by high sensitive sensor,
* Automatically wire cutting
* Central Threading & Folding are finished on machine at one time
* Compare with traditional threading equipment, it is much higher speed,stable performance, can cut wire & folding & pressing automatically.
Finished products look nicer and higher quality.
