Single Facer Corrugated Paper Making Machine
| US$14,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
single face corrugated paper making machine
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Recycled Material, Paper
Paper Thickness
Corrugated Cardboard
Item
Corrugated Cardboard Single Facer Machine
Size
1800/2200/2500
Type
Packaging Line
Name
Carton Box Making Machine
Function
Corrugated Box Machine
Usage

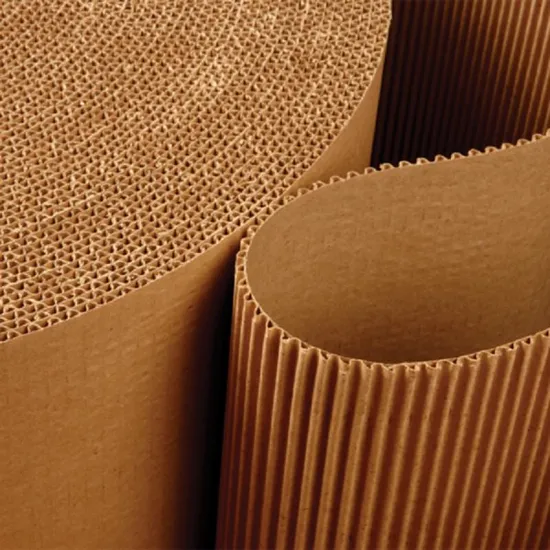

Making Corrugated Cardboard
OEM
Accept
Speed
60m/Min
Machinery Test
Provided
Application
Food, Beverage, Commodity, Medical, Chemical
Voltage
380V/415V/440V
Delivery Time
30days
Use for
2/3/5 Layers Line Width 1800-2500mm
Transport Package
Standard Packaging
Specification
Standard
Trademark
YIKE Group
Origin
China
HS Code
84413090
Production Capacity
50sets/Month
Product Description
regular technical parameters:1,effective width:1600mm
2,operation direction:left or right(determined in accordance with customer plant)
3,design speed:100m/min
4,temperature range:200-260ºC
5,corrugated flute:(UV type or UVV type)
roller diameters parameters:
1,diameter of corrugated roller: ¢280mm
2,diameter of pressure roller: ¢284mm
3,diameter of glue roller: ¢216mm
4,diameter of preheat roller: ¢320mm
powered motor parameters:
1,main drive motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard
2,suction motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard
main purchased parts,materials and place of origin:
| Name of main parts | Brands or place of origin | Material and type |
| Wall and Pedestals | Production own | HT200 |
| Rotary joints and metal hoses | Shan dong teng zhou luguanqiu | |
| Main drive motor | Hebei Hengshui | 7.5Kwspeed motor |
| bearing | HRB,ZWZ,CYC or Zhengjiang wanxiang | |
| Seat belt bearing | Zhengjiang five rings | |
| High pressure air | Shanghai Yingfa | |
| cylinder | Zhengjiang Sanzheng | |
| contacts | Chint or de li xi |
