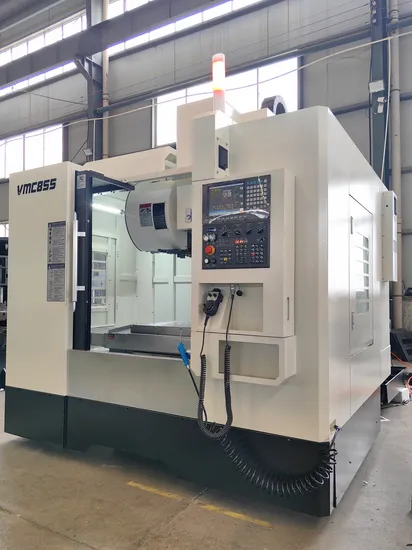

Hinwin/PMI Linear Way/Ball Screw CNC Vertical Automatic Milling/Machine Center/Tool Vmc850/1160/1270/1370/1580/1690/1890 CNC Vertical Machining Center Lathe
| US$25,714.28-33,571.42 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JT-VMC1375
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Precision
High Precision
Net Weight
7500kg
Sustem
Fanuc
Optional System
GSK/Fanuc/Siemens/Mitsubishi/Syntec/Knd/Kt
Transport Package
Seaworthy Packing
Specification
3500*2600*2900mm
Trademark
JT
Origin
China
HS Code
8458110000
Production Capacity
1500sets/Year
Product Description
Product Parameters
| Model | Specification | Photo | ||||
| JT-VMC1375 | Control System | GSK/Fanuc/Siemens/Mitsubishi/Syntec/KND/KT | ||||
| Feed Motor | NM | 18/18/22 | ||||
| Table Size | mm | 1400*700 | ||||
| Maximum Allowable Load | kg | 1300 | ||||
| T-Slot Size | Mm/piece | 5-18*130 | ||||
| Maximum X-Axis Travel | mm | 1300 | ||||
| Maximum Y-Axis Travel | mm | 700 | ||||
| Maximum Z-Axis Travel | mm | 700 | ||||
| Distance from Spindle Nose to Table Surface | mm | 110-810 | ||||
| Taper (7:24) | BT 50 φ150 | |||||
| Spindle Speed Range | r/min | 6000 | ||||
| Spindle Motor Power | kw | 15 | ||||
| X/Y/Z Axis Rapid Feedrate | m/min | 24/24/24 | ||||
| X/Y/Z Axis Ball Screw | mm | ∅4512 | ||||
| Feedrate | mm/min | 1-6000 | ||||
| Tool Magazine Type | Belt type | |||||
| Tool Magazine Capacity | pieces | 24 | ||||
| Tool Change Time (Tool-to-Tool) | s | 2.5 | ||||
| Pull Force | KN | 8 | ||||
| Tool Holder Model | MAS403 BT40 | |||||
| Pull Stud Model | MAS403 BT40 | |||||
| Maximum Tool Diameter (Full/Empty) | mm | 80-120 | ||||
| Maximum Tool Length | mm | 300 | ||||
| Maximum Tool Weight | kg | 8 | ||||
| X/Y/Z Axis Positioning Accuracy | mm | ±0.005/300 JIS | ||||
| X/Y/Z Axis Repeatability | mm | ±0.003/300 JIS | ||||
| Machine Dimensions (L×W×H) | mm | 3500*2600*2900 | ||||
| Machine Weight | kg | 1300 | ||||
| Main Components | CNC System | GSK/Fanuc/Siemens/Mitsubishi/Syntec/KND/KT | China | |||
| Servo Drive | System Compatible | China | ||||
| Three-Axis Ball Screw | 4512 | HIWIN | Taiwan | |||
| Three-Axis Linear Guide (Roller) | RGH45 | HIWIN | Taiwan | |||
| Tool Magazine | BT50-24T | Desu | Taiwan | |||
| Belt-Type Spindle (with Ring Spray) | BT50 | Aibeco/Taida/DanQuan | China | |||
| Pull Rod Cylinder | 4.5T | DanQuan/Haocheng | Taiwan | |||
| Main Pneumatic Components | n/a | AIRTAC | Taiwan | |||
| Automatic Lubrication System | n/a | Baoyu | China | |||
| Heat Exchanger | n/a | Wengheng | Shanghai | |||
| Work Light | M9-600/16W | OEN | Guangdong | |||
| Alarm Light | 5i-I2-A3-BBF-T | OEN | Guangdong | |||
| Three-Axis Telescopic Covers | n/a | Haidong | China | |||
| Cooling Pump | n/a | Deyang | China | |||
| Main Electrical Components | n/a | Delixi | China | |||
| Centralized Coolant Filter | 30KG | Quanguan | China | |||
| Chip Conveyor | Chain Plate Type + Chip Cart | Matched with External Sheet Metal | China | |||
| Standard Configuration | High-Precision HT300 Castings | Network Transmission Port or R232 Interface | ||||
| Spindle Air Curtain | Drawer-Type Chip Conveyor | |||||
| High-Stability Tool Magazine | Air Blowing System (Cooling or Cutting) | |||||
| Luxury Explosion-Proof LED Work Light | Automatic Centralized Lubrication System (with Alarm Function) | |||||
| Spindle Taper Cleaning Air | Luxury Work Alarm Indicator | |||||
| High-Performance Servo Motor | Filter Tank System | |||||
| Portable Control Handwheel | High-Pressure Water Pump | |||||
| Leveling Bolts and Foundation Pads | Preloaded Nut for Three-Axis Screw | |||||
| Optional Configuration | Fourth Axis | Rotary Table TJR255, Fourth-Axis Drive Motor, Hydraulic Station | ||||
| Tailstock | Disc-Type Tailstock + Bridge Plate + L-Shaped Plate | |||||
| Spindle Oil Cooler | ||||||
| Electrical Components | Siemens | |||||
| Chip Conveyor with Material Box | ||||||
