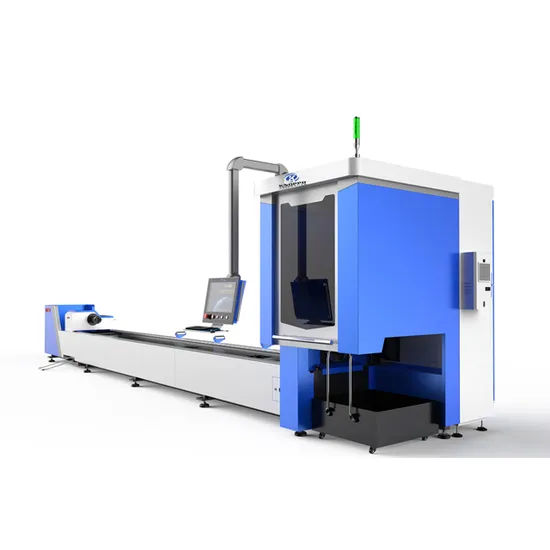

3D CNC Metal Laser Pipe Cutter Tube Pipe Laser Cutting Machine Automatic Fiber Laser Cutting Machine with Pipe Cutting

Product Description

KNOPPO FIBER LASER TUBE CUTTING MACHINE , 3 YEARS WARRANTY
Product Description
Professional Laser Tube Cutting Machine for round pipe ,square tubes,rectangle tubes,tubular elements and H beam profiles. Our Tube Laser Cutting Machine have different model , can cut tubes from 10-500 mm in diameter with length 6 meters or 12 meters , automated feeding tube and pipe function.
APPLICATION
Fiber laser has a series of advantages,tube laser cutting machine has gradually been used more and more in tube processing companies.
such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, carbon steel, alloy, brass, copper, titanium and other metal materials precision cutting. It is widely used in metal products, bicycle, metal furniture, fitness equipment, sports equipment, farm machinery, display shelf, fire control.

Product Parameters

Model		KT6
Laser Power		1000W/1500W/2000W/3000W/4000W/6000W/8000W / 12KW
Tube Cutting Length		6m / 12m
Tube Cutting Diameter		Round Tube: φ50-φ500mm Square Tube :50-350mm U-Steel 5#-40# I-Beam 10#-40# Angle Iron 250*250mm
Machine overall dimensions		8550*2300*2000mm
Machine weight		6000kg
Max. linkage speed		140m/min
Max. acceleration		1G
Positioning accuracy		0.03mm
Repositioning accuracy		0.02mm
Option		Semi-automatic loading / Full-automatic loading system

Detailed Photos
Switzerland Raytools Or Germany Precitec Laser Head
Switzerland Brand , Good quality .Raytools is most popular as NO.1 on the world. Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses. protective lens can carefully protect key components.
MAX Laser Source
MAX is largest manufacturer of laser source in China , can cut carbon steel , stainless steel and aluminium etc . Good quality and long life . Suitablef for 24 hours continuous working .
Strong Welding Machine Body
High compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.
Japan YASKAWA Servo Motor
1. Adopting Japan Yaskawa servo motor, adopting closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.
FSCUT5000 Control System
Real-time compensation for pipe center deviation, reducing pipe clamping requirements and higher efficiency; pipes have higher perforation precision and more accurate cutting.
Based on the bus real-time system and the integrated control, the pipe corners are cut faster; the corner following is more stable, and the cutting quality is more reliable.
Support the follow-up function of the bracket to ensure the quality of the whole pipe processing and cutting of the pipe.
It supports feeding cutting of hollow chuck, greatly shortens the overall length of the pipe cutting machine, and high automation.
It supports the pulling cutting of three chucks to ensure the cutting accuracy of long parts and realize zero tailing cutting.
servo control aspects, its running speed and accuracy should obviously be better than other similar products, owing to dual closed-loop algorithm of speed and position. Support alarm while hitting the board and beyond the edge. Support edge detection and automatic inspection.
Automatic Rotary And Chuck
Automatic electric chuck, claw DC motor drive, clamping motor current is sensitive, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering electric chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
Full-automatic Loading System
Automatically detects tubes and clamps the next tube to the standby place. After the processing for the previous tube finishes, the device loads the next tube in time and achieves constant processing in a real sense.
Sample
Certifications
Our fiber laser cutting machine have CE certificates , all electric drawing and quality is suitable European standard .
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
