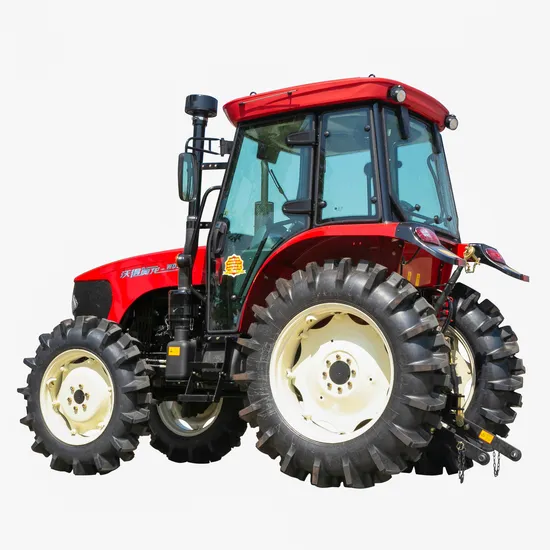

4 Cylinder Diesel Agricultural Tractor with Wet/Dry Air Cleaner
| US$10,500.00-11,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WD904
Power Source
Diesel
Drive Type
Gear Drive
Transmission
Hard Shaft
Certification
ISO9001:2008
Color
Red &Black
Condition
New
Application Field
Agriculture
Fuel Tank Capacity
150
Air Cleaner
Wet/Dry
Engine Type
4 Cylinder
Brake
Mechanical Disc
Trademark
WORLD
Origin
China
HS Code
20000
Production Capacity
20000
Product Description
Feature1.The shift synchronizer makes shifting lighter and convenient.
2.Equipped flat tire as standard, Paddy tire optional.
3.Adopt technology of chassis of ltaly Fiat for better performance.
4.Adopt transmission 16+8 shuttle for easier operation, transmission 24+24 shuttle
optional.
5.Good sealing perforamnce of axles ensure working in water or deep mud field.
6. Use rear double steering cylinders on front axle for reducing turning radius.
7.Water tank uses three-dimensional dust proof net which enlarges air inlet area, also
prevents debris from entering tank.. Air brake is optional for road transport,
8.High quality bearings are used for long work prolonging work life.
9.Equipped ROPS&Canopy as standard,Cabin optional for comfort.
Parameter
| Model | WD904 | |
| Structure | 4x4 | |
| Engine | Power@speed(HP) | 90@2300 |
| Engine Type | 4 cylinder, Inline | |
| Fuel Tank Capacity(L) | 150 | |
| Air Cleaner | Dry/Wet | |
| Transmission | No. of Speed | 16+8 Creeper |
| Main Clutch | Double | |
| Brake | Hydraulic disc | |
| PTO Speeds(rpm) | 760/850(option540/1000) | |
| Category Il &3 point hitch | Category Il &3 point hitch | |
| Suspension | Control System | Position, draf(opt) |
| Lift Capacity at behind lit point(KG) | 1621 | |
| Tires | 13.6-24/16.9-34 | |
| Travelling Speed(Max.) (Km/H) | 34.9 | |
| Optional Balance Weight Front/Rear (KG) | 320/180 | |
| Weight (KG) | 3650 Canopy/3950 Cabin | |
| Steering | Hydraulic Power Steering | |
| Dimension(mm) | 4250*2080*2820 | |
| Ground Clearance(mm) | 379 | |
| Wheel Base Front/Rear(mm) | 1610/1620 | |
