Factory Sale Waste Logs Drum Wood Chipper with CE Certificate

Product Description

Product Description

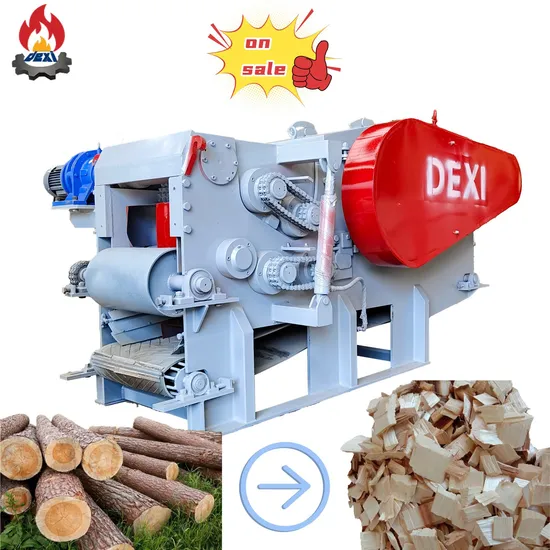

China Factory Price 110kw Engine Drum Wood Chipper And Crusher Machine
1. GX series drum wood chipper is mainly used to crush big wood logs or wood timber,plywood,wood branches,furniture waste into small chips,the thickness of last chips is 3mm-5mm,length and width is about 15-30mm,it is wood chips not wood shavings.By adjusting knives gap,outlet chips dimension will be adjusted.
2. GX wood chipper machine contains 3m long feeding belt conveyor, when conveying logs, the speed can be adjusted also it can connect with outlet conveyor to transport away crushed wood chips.
3. GX wood chipper machine knives can be sharpened by knives sharpener,the rotary blade must be sharpened every day,it can be used for 40-45 days,the fixed blade has 4 month service life. Features At A Glance
Function introduction

1. Flexible adaptability. The design of wood chipper and shredder avoids making the foundation. And it is suitable for many different conditions, it does not influenced by weather and other external conditions.
2. Save time. This wood chipper and shredder can put into produce directly which will save much time.

3. Save money. This wood chipper and shredder has a large capacity and works reliable, only one or two worker can control the machine.
Product Parameters

MODEL	GX216	GX218	GX2113
FEEDER SIZE(mm)	500*270	700*300	700*450
QTY OF FLY KNIVES(PCS)	2	2	3
SPEED OF KNIVES RUNNIN(R/M)	650	650	500
MAX DIAMETER FEEDER(mm)	230	300	450
WOOD CHIPS SIZE ABOUT(mm)	30	30	38
CAPACITY(T/H)	5-8	8-15	15-25
MAIN POWER(kw)	55	110	220
FEEDER POWER(kw)	3	5.5	7.5
OIL PUMP POWER(kw)	1.5*1	1.5*1	3*1
WEIGHT(kg)	4070	7000	11840
MACHINE OUTER SIZE(mm)	1800*1900*1210	2200*2150*1500	3670*2517*2050
BACK CONVEYOR POWER(kw)	3	3	4

Detailed Photos
Products Advantages
Features of wood chipper machinery:
1. Flexible adaptability. The design ofthis machine avoids making thefoundation. And it is suitable for manydifferent conditions, it does not influenced by weather and other external
2. Save time.This machine can putinto produce directly which will savemuch time.
3. Save money. This machine has alarge capacity and works reliable, onlyone or two worker can control the machine.of inlet, the driving device that is atthe left side of drying body is left driving

Product Detail Diagram
Manganese steel Blade thickness 20mm, Manganese steel Large size feed inlet
thin 1mm per grinding. Lifetime:4-6 months Lifetime:around 400-600h
1.Adopt hard gear reducer to prolong service life.
2.upper feed and lower feed are using frequency conversion controller, can automatically adjust the feeding direction and reverse direction discharge when the current is too large. When the current of the main motor returns to normal, the continuous feeding will greatly protect the smooth operation of the equipment and the electrical safety of the customer.
3.Inverter, overload protector all use domestic famous brands, can also be customized according to the needs of the brand.
4.New design blade rotor,blades are easy to replaceable.
5.Cover of crushing chamber could be opened by hydraulic,ease for maintenance and changeble blades.
6.Screen mesh size is customized for different requirements on size of end product. Customer Interview
Welcome you visiting our company for more deply communication about the machines.
There are many photos for our cusotmer visited us before, hope it can give you a rougly idea about us.
Packaging & Shipping
For the Wood Chipper machines / complete pellet production line loading, we have rich experence, we know which is the best way to loading them into container and also keep them safty when transfer.
Loading different model of drum type drum chipper machines to our customers by container.
Company Information
Shandong Dexi Machine Co., Ltd is professional supplier for the biomass pellet machines and complete pellet production line. our products involve , wood chipper, wood sawdust making machine, hammer mill, drum rotary dryer, pellet making machine, pellet cooling machine, pellet packing machine and other related auxiliary equipment.

We also provide design, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the pellet making machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the client's specific requirement, we also accept customize design and machine producing order. Through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.

Any interesting for the wood pellet making machines, please feel free to contact us.
