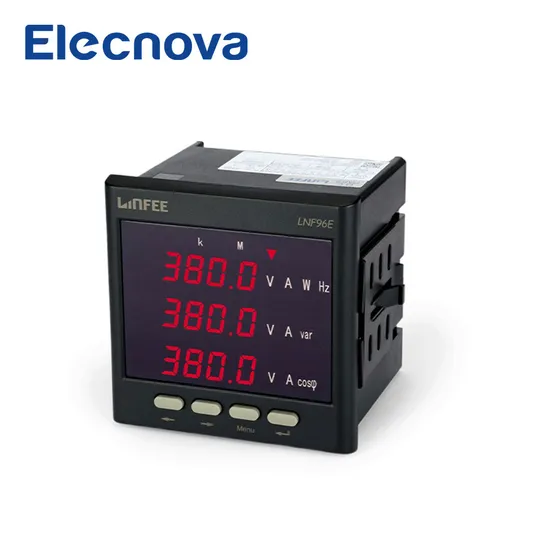

Panel Mounted LED Ammeter Voltmeter RS485 Communication Three Phase Multifunction Power Meter

Panel Mounted LED Ammeter Voltmeter RS485 Communication Three Phase Multifunction Power Meter

US$45.00
1-99 Pieces
US$40.00
100-499 Pieces
US$32.00
500+ Pieces

Basic Info.

Model NO.
LNF96E-C
Installation
Direct Connected
Usage
Multi-Functional Energy Meter
Electric Equipment
Three-phase Three-wire
Theory
Power Meter
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Power Meter
Certification
ISO, CE
Customized
Customized
Display Method
LED
Accuracy
0.5s
Data Refresh Frequency
1s
Degree of Protection
IP54
Frequency
45-65Hz
Real-Time Measurement
I/U/P/Q/S/F/PF
Harmonic Content
2-15 Times
Communication
RS485
Supply Voltage
80~270V
Rated Voltage
AC 100V/380V
Working Range
AC/DC 80~270V
Signal Input Energy Consumption
≤0.1va
Storage Temperature
-25~70ºC
Working Temperature
-10~55ºC
Altitude
≤93%Rh
Specification
96*96mm
Trademark
LINFEE
Origin
China
HS Code
9030809090
Production Capacity
30000PCS/Per Month

Packaging & Delivery

Package Size
11.00cm * 9.00cm * 9.00cm
Package Gross Weight
0.500kg

Product Description

Panel Mounted LED Ammeter Voltmeter RS485 Communication Three Phase Multifunction Power Meter
This series of multifunctional power meters has the functions of full power parameter measurement, two-way power metering, four-quadrant reactive power metering and harmonic analysis, and can be connected to power monitoring systems and energy management systems. It is characterized by high precision, high protection level, and expandable functions.
Product Description
Technical Specifications
Accuracy 0.5S
Data Update Rate 1s
Signal Input Rated Current AC 1A,5A
Rated Voltage AC 100V,380V
Overload Continuous:2In,instantaneous:10In/5s
Continuous:1.2Un,instantaneous:2Un/1min
Energy Consumption ≤0.1VA
Fequency 45~65HZ
Communication RS485 Interface Modbus-RTU protocol, baud rate up to 9600bps
Energy Pulse Optocoupler isolation ,pulse width 80ms±20%
Digital Input Optocoupler isolation ,passive dry contact
Relay Output Contact capacity AC250V 5A or DC 30V 5A
Auxiliary Power Supply Working Range AC/DC 80~270V
Energy Consumption ≤5VA
Environment Condition Working Temperature -10~55ºC
Storage Temperature -25~70ºC
Relative Humidity ≤93%RH
Altitude ≤2000m
Safety Insulation SignaL,power supply,output terminal to case resistance ≥100MΩ
Withstand Voltage Power supply,input and output ≥2kv
Protection Level IP54
Function
Typical Wiring
Application
Related Products
Company Profile
FAQ Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000, 30% as deposit, 70% before shipment, or by negotiated for the both parties.
