Smart LDPE Film Recycling Line for Crushing Washing Drying Farm LLDPE Film with Hot Floating Washer

Product Description

Excellent Quality LDPE Film Recycling Line for Crushing Washing Drying Farm LLDPE Film with Hot Floating Washer
Product Description
Our Post Consumer PP PE LDPE LLDPE Film/Bag Plastic Washing Recycling Machine/Line/Plant is fully designed&manufacturered by RETECH recycling team. With more than 15 years experience to keep reserching and development, we can achieve to offer 300kg/h-2000kg/h capacity PE film washing and recycling solutions according to your special requirements.
The design is mainly to processing following:
* LDPE agriculture films washing line
* LLDPE warpping stretch packing films washing line
* PP woven bags recycling washing line
* PP jumbo bags recycling washing plant
1) Crusher/Grinder
Our PE film/PP bags crusher is designed to cut PE film in best efficient. With stepped blades structure for moving blades,it will cut the plastic in highest performance and in lowest current and noise. All the cutting way is balanced and stable.
2) Friction Washer
The friction washer is used to remove the dirt from plastics.It works with the fuction of centrifuge force to separate sand,mud,stones..etc. As soon as the film come into floating washing tank,it is in minimum dirt content. It will have a big help to film cleaning.
3) Floating washing tank
The film floating washing tank is used to clean and washing the dirt PE films. With water spary constantly inside,it will keeping on washing. The rollers will push the PE films ups and downs to get fully wash. Stay in floating tank for a long time with 3 channels will ensure the enough time to washing.
4) Squeezing dewatering dryer
RETECH has 2 options for film squeezing machine.
1st option is designed to dry film by conical screw and barrel. It pushes film to go from big space to small, the final film is getting tightly and dry. The material is cutted by blades.
2nd option is designed to making pellets type by heating. The dried film will be heated in semi-plasticing and cutted in small granules shape.
Detailed Photos

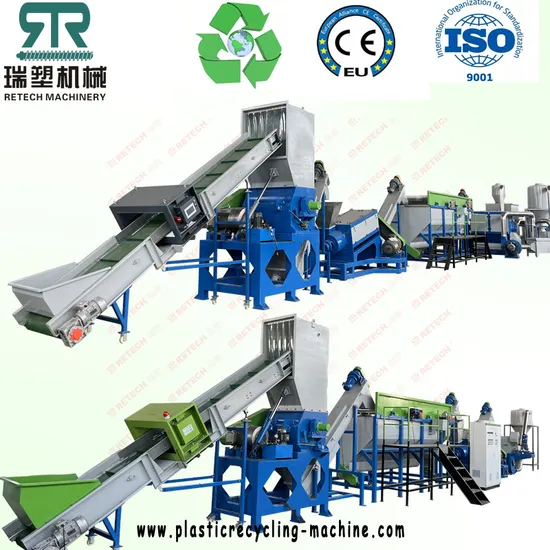

PP PE Film Washing And Granulating Line
Product Parameters

Models	Capacity	Total Power	Workers
TSWL300	300kg/h	95~150KW	1~2
TSWL500	500kg/h	180~250KW	2~3
TSWL1000	1000kg/h	280~380KW	2~3

Certifications
Packaging & Shipping
Our Advantages
Features
1. The main material is PE agriculture film, PE bags, shopping bags, beverage bags, PP woven bags, and some other soft material etc…
2. The main process of the washing line is crushing, washing, drying parts.
3. The capacity of the washing line is from 200kg/h to 2000kg/h.
4. There crusher is to crush the film and woven bags to small pieces with size 70mm to 120mm.
5. Cold water sinking swimming tank can wash the common dirties, like the soil, sand, earth, stone, glass out.
6. High speed friction washer and hot sinking swimming tank can remove the strong dirties, like the grease, oil, glue.
7. With big capacity, double drying system can ensure the final products, PE PP flakes moisture lower than 5%.
8. With squeezing machine, the moisture level of PE PP flakes can be lower than 3%.
9. Final PP PE flakes can be taken directly to the granulating/pelletizing line to make granules/pellets.
Company Profile
Q&A about plastic recycling machines:
1. What is the function of the PE PP film washing recycling machines?
*The PE PP film washing recycling machinery is used to recycle and process the PE agriculture film, PE bags, shopping bags, beverage bags, PP woven bags, and some other soft material etc…
2. Where does it collect the waste material for the PE PP film washing recycling machines?
*The waste mater is gotten mainly from agriculture film, city rubbish and plant in bale package or separated. They are with much dirties, such as the earth, soil, sand, stone, glue, grass, oil, and some other dirties.
But by our many years experience to manufacture the washing line, we can promise to wash the material clean enough to take the washed material into the extruder to make granules. We have our special design to guarantee this point.
3. What are main parts of the PE PP film washing recycling machines?
*The following is a standard structure of the PE PP film washing recycling machinery:
Belt conveyer--- crusher with water--- screw conveyer--- floating washer--- screw conveyer--- high speed friction washer--- high speed friction washer--- screw conveyer--- horizontal centrifugal dewatering machine (or squeezer)--- drying system 1--- transition hopper--- drying system 2--- storage silo--- operating panel
The up is a standard structure of the line, we can adjust it to remove some parts or add some parts due to the situation of the material or customers' requirements.
4. What capacity of the PE PP film washing recycling machinery?
*300-2000kg/h for single washing line
5. What power of the PE PP film washing recycling machines?
*150kw~480kw
6. How much water does it need of the PE PP film washing recycling machines?
*3~8T per hour
7. How large space does it need for a PE PP film washing recycling machines?
*100~400 square meters, the whole line could be installed by straight, "L" shape or "U" shape. We could design how to instal the machines due to the space of your factory.
8. What is the condition of the final products from the PE PP film washing recycling machines?
*The size of final flakes will be 50~100mm, and final moisture level of film flakes will be lower than 5%.
The PP PE flakes can be taken directly to the granulating/pelletizing line to make granules/pellets.
9. What is material of the PE PP film washing recycling machines?
*The parts contacted with water are made of stainless steel SUS 304 or customized.
10. What certifications do you have for the PE PP film washing recycling machines?
*We have CE and ISO9001 certification for the entire PE PP film washing recycling machines.
Contacts us:
RETECH is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including PET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
