3D Dental Panoramic X-ray Machine Cbct Cephalometric

Product Description

Product Description

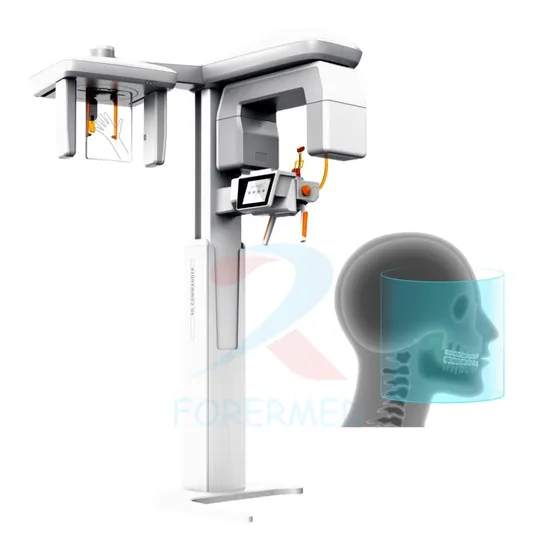

3D Dental Panoramic X-ray Machine Cbct Cephalometric
YJ-QD1227
4 in 1 CBCT M2FoV, variable FoV for your preference Leading technology of M2Fov. The Fov varies from 5cm*5cm to 16cm*17cm. change of Fov can beas small as 1cm. FoV can be adjusted freely to fit treatment. Tomosynthesis multiple trail smart panoramic technology in one scan, system collect data from multiple trails and select optimized image foroutput Adiustable FoV, minimum exposure dose Set FoV according to treatment plan, optimize exposure dose to ensure As Low. As Reasonably Achievable (ALARA) Metal artifact removal Self developed SMARTer metal artifact removal algorithm delivers outstanding result
Detailed Photos Display Image 3D software for precise treatment

Product Parameters

Mode	CBCT, Panoramic, cephla, TMJ
CBCT Detector	Amorphous silicon detector / CMOS
Grey scale	16bit
Tube voltage	70~90Kv
Tube current	4mA~10mA
Focus	0.5mm
Patient position	stand up, face to face
Scanning time	CBCT 15s panoramic 17s Cephla 0.7s/12s TMJ 20s
Reconstruction	<60s
FoV	15cm*10cm (5*5~15*10 adjustable) 16cm*11cm (5*5~16*11 adjustable) 16cm*17cm (5*5~16*11 adjustable, 16*17)
Voxel	0.25mm,0.2mm,0.1mm,0.075mm
Dimensions	1900mm (L) *1350mm(W) *1700~2400mm(H)
Min. Footprint	2500mm(L) *2000mm (W) *2700mm (H),with Cephla 2000mm(L) *2000mm(W) *2700mm(H) , without cephla

Relative Products

YJ-QD2000 Dental Cephalometric Panoramic Imaging CT X Ray Machine	YJ-PLX3000 APanoramic Imaging Digital CBCT Dental system	YJ-S3 Dental Intraoral Scanner
