Feibin High Speed Side Plane Paste Automatic Labeling Machine Head
Basic Info.
Model NO.
FK835H
Automatic Grade
Automatic
Application
Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Dairy Products
Type
High Speed Labeling Machine
Driven Type
Electric
Classification
Plane Labeling Machine
Product Name
High Speed Production Line Labeling Head
Labeling Speed
Optional: 0 - 30 / 50 / 80 /100/ 150 / 180 M/Min
Service
Customization;One Year Warranty
Specific Use
Flat Top, Bottom, Side Surface Labeling
After-Sales Service Provided
Online Support, Video Technical Support
Labeling Accuracy
±0.5 mm
Transport Package
Wooden Case
Specification
910*670*370mm
Trademark
FK SPEEDA
Origin
Dongguan
HS Code
8422309090
Production Capacity
20PCS/Month
Product Description

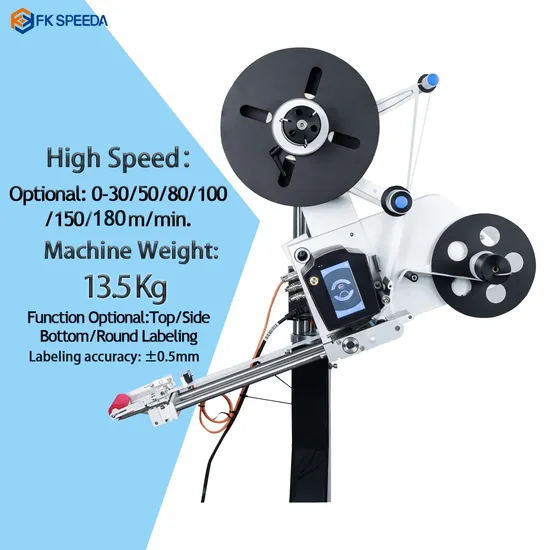

FK835H Automatic line production high speedlabeling machine head
Product information. FK835 automatic line labeling head can be installed on assembly line, labeling on upper plane and cambered surfaceof flowing objects.Optional inkjet machine to conveyor to print production date, bat--ch number, and expiry date before or after labeling.
Product Advantages:
1. Chinese and English touch operating system, the real realization of man-machine dialogue, easy to learn to operate.
2. simple head base plate, easy to adjust.
3. high - precision eye location,One or two labels at a time, especially for round bottles with symmetrical front and back labels Product Parameters
| Label specifications | 10x 10 mm ~160 x 400mm |
| Max back paper width | 160 mm |
| Label roll diameter | 300 mm (Winding: inward/outward) |
| Label Reel | Reel:76 mm (Optional: 40 mm,45 mm) |
| Labeling speed | Optional: 0 - 30 / 50 / 80 /100/ 150 / 180 m/min |
| Labeling accuracy | ± 0.5 mm |
| Installation method | Left-hand unit • right-hand unit |
| Label sensor | Fork sensors UF |
| Labeling method | Adjustable: special flattening brush for label stripping plate; Flattening roller or spring flattening roller; Optional: swinging label stripper |
| controller | Integrated in labeling machine |
| Power | 220VAC ±10%, 50 / 60 Hz; |
| Basic Application | *For all kinds of production line labeling. *Widely used in food, cosmetic, chemical, pharmaceutical and other industries. *Date printer can be added to print production date,batch lot and expiry date while labeling. *Support customization.In stock. |
Product Application
