Upgrade Forks Electric Pallet Truck Brake CE OEM

Product Description

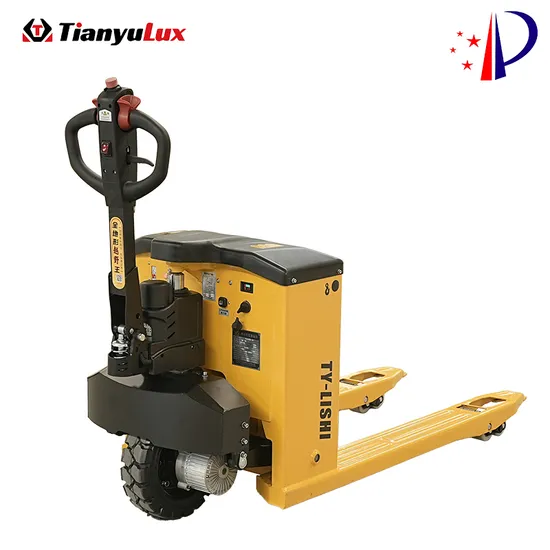

3T 5T all terrain Off-road electric pallet truck for harsh condition with CE Product Description
Our off road truck suitable for any type of terrain.It is a highly competitive product.We designed it for use in harsh and complex working conditions. You can use it on construction sites,in factories,even in cold storage,in outdoors,and all walks of life.It is an efficient and distinctive product. This product is equipped with a waterproof switch and wider wheels, which are convenient for operation on complex terrain.It also comes with a fully sealed gearbox, making it durable and stable.The truck is equipped with four heavy-duty load-bearing bearings on the outside, and even if one of them falls off, it will not affect its use.
Detailed Photos
6mm thickened integrated stamped fork
(High strength, wear resistance Anti-collision and anti-smash)48V permanent magnet brushless maintenance-free motor
Load 3T-5T large load, strong power
350×100mmhigh quality solid rubber wheel
(suitable for harsh and complex working conditions) Cylinder assembly (heavy duty integrated cylinder, high strength, thickened cylinder rod, 50mm diameter)
Battery compartment cover (sealed, upgraded with waterproof, dust proof, collision-proof, smash-proof, fully enclosed)
Enlarged battery compartment
Lithium battery and lead-acid battery optional Drive assembly,powerful motor,High quality solid rubber wheel(size is 350×100mm, ), fully sealed gearbox , strong passability.
Product Parameters

Features	1	Model		TYA30 ( Lead Acid)	TYA30( Lithium battery)
	2	Power form		Electrical	Electrical
	3	Operation		Pedestrian	Pedestrian
	4	Load	kg	3000	3000
	5	Load center distance	mm	600	600
	6	Wheelbase	mm	1320/1250	1320/1250
Weight	7	Self weight with battery	kg	225	200
Wheel	8	Wheel Type		Front rubber, rear PU/nylon	Front rubber, rear PU/nylon
	9	Driving wheel size (diameter×width)	mm	φ350×100	φ350×100
	10	Load-bearing wheel size (diameter×width)	mm	φ80×70/60	φ80×70/60
	11	Number of wheels Drive side / Load side		1/4	1/4
Basic size	12	Maximum height of fork	mm	200	200
	13	Lifting stroke	mm	115	115
	14	Minimum height of fork (±2mm)	mm	85	85
	15	Fork outer distance	mm	570/685	570/685
	16	Fork inner distance	mm	250/385,230/365	250/385,230/365
	17	Length of forks	mm	1150/1220	1150/1220
	18	Width of forks	mm	150/160	150/160
	19	Thickness of forks	mm	60	60
	20	Overall width	mm	570/685	570/685
	22	Overall height without handle	mm	800	800
	22	Overall length	mm	1830	1830
	23	Overall height with handle	mm	1320	1320
	24	Turning Radius	mm	1550	1550
Capability	25	Travel speed, laden/unladen	km/h	4/4.5	4/4.5
	26	Lifting speed, laden/unladen	mm/s	15/19	15/19
	27	Maximum climbing grade, laden/unladen	%	8/16	8/16
	28	Brake type		Electronic brake / electromagnetic brake	Electronic brake / electromagnetic brake
Motor / Battery	29	Rated power of driving motor	kw	1.0	1.0
	30	Rated power of lifting motor	kw	0.8	0.8
	31	Battery	V/Ah	48/32	48/30
	32	Battery weight	kg	36	36

Company Profile
Hebei Tianyu Lux Electromechanical Technology Co., Ltd. is a subsidiary of Hebei Tianyu Machinery Manufacturing Co., Ltd., specializing in international trade, mainly engaged in international sales and service of pallet trucks, electric warehouse forklifts, manual platform forklifts and mechanical and electrical products.
Since its establishment in 1993, Hebei Tianyu Machinery Manufacturing Co., Ltd. has always adhered to the development concept of "innovation and reform, pursuit of excellence". In the past 30 years, it has built a modern management system and advanced quality management process, and completed the upgrade from control processing to preventive control. The company currently has more than 200 employees, more than 20 technical R&D personnel of various types, and has a number of national patents. The production process has obtained the international ls09001 quality system certification; it has established distribution service outlets in more than 30 provinces, cities and autonomous regions in China, and its products are exported to more than 50 countries and regions such as the European Union, the Middle East, Southeast Asia, North America, and South America, and has won the trust and choice of more than 3,000 partners!
Tianyu Lishi will keep pace with the times, continue to provide customers with high-quality products, create a win-win platform for partners, and help the harmonious development of society. In the future, we will continue to adhere to the principle of "keeping pace with the times and achieving win-win cooperation" and sincerely work hand in hand with customers all of the world to achieve mutual benefit and create a better future!
Packaging & Shipping

Certifications
FAQ
Q1: Why choose us?
A1: As a manufacturer, TianyuLux is committed not only to providing high-quality, high-performance and competitively priced electric forklifts, but also to timely delivery and comprehensive 7/24 after-sales service. We integrate scientific research, development, production, sales and service. In addition, TianyuLux's products have become the No. 1 brand of all-terrain transporters in China, with more than 1,000 dealers.
Q2: Do you have agents or representatives abroad?
A2: TianyuLux is an industry leader with an international vision, originating from China. At present, it is expanding dealers and regional partners to the global scope.
Q3: What are the specifications of the battery?
A3: TianyuLux has lead-acid batteries and lithium batteries of different specifications, and customers are welcome to customize.
Q4: Is there a product warranty?
Q4: We provide a one-year warranty, covering failures not caused by improper use (such as overloading or misplacing items). Wearing parts such as wheels and fuses are not covered by warranty.
Q5: How about the delivery time?
A5: Usually TianyuLux production time is 20-30 working days after receiving advance payment. For standard products, we always have stock and can deliver immediately. But customized products will take more time, depending on your requirements and instructions.
Q6: What payment items can we accept?
A6: Usually a 30% deposit is required in advance, and a 70% balance is required before shipment. 100% irrevocable L/C at sight and the terms we agree are also acceptable
Q7: What certificates do we have?
A7: All products comply with lSO 9001 quality system and have CE certification
Q8: Can we provide OEM service?
A8: TianyuLux can provide customized products according to customer requirements, both OEM and ODM are acceptable.
Q9: What can I get from cooperating with TianyuLux?
A9: 1. Unique products, customized services are available. 2. Timely production and delivery, time is money. 3. Market protection services, long-term business strategy.
