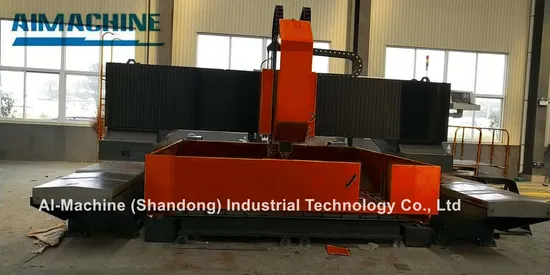

High Speed Gantry Sheet Plate Drilling Milling Machine for Steel Structure

Product Description

Product Description
Applicable industry: Used for the drilling processing for tube plate, clapboard and flange, in petrochemical, boiler, and wind power flange industries, also for joint plates in building, bridge, iron tower, etc.
1. Heavy-load linear roller guide pairs are equipped on two sides of the machine bed respectively. The longitudinal movement of the gantry's two sides is driven synchronously via AC servo motor and precise ballscrew pair of big pitch.
2. Two movable slides are equipped on the cross beam of gantry. The sliders are guided by two linear roller guide pairs and driven by AC servo motor and precise ballscrew pair of big pitch respectively.
3. The slides on the cross beam are equipped with vertical CNC feeding ram-type drilling spindle, which adopts special conversion motor with heavy load for spindle. The motor drives the spindle via synchronous belt. The drilling spindle adopts Taiwan precision spindle (innercooling) with disk spring automatic broach mechanism, hydraulic cylinder loosing cutter, very convenient to change shank.
4. The machine is equipped with hydraulic system to finish the hydraulic balance of vertical ram and hydraulic cutter loosing of spindle.
5. It adopts FAGOR8055 CNC system of Spain, equipped with RS232 interface and LCD screen. The automatic programming provided can not only generate processing programs automatically, but also preview hole position before drilling.
6.It is equipped with chain-plate type automatic chip-conveyor and chip collection trolley. The cooling system is equipped with paper filer, high-pressure innercooling pump and low-pressure outercooling pump, which are used for innercooling or outercooling of cutter.
Product Parameters

Model		PHD2020	PHD2525	PHD3030
Max. size of workpiece (mm)	Max. hole distance L×W (mm)	2000×2000	2500×2500	3000×3000
	Max. thickness(mm)	300
Worktable	Width/distance of T groove(mm)	28/500
Drilling spindle	Quantity	2
	Spindle taper	BT50
	Max. diameter of drilling(mm)	Φ40 (carbide drill) Φ50(high speed twist drill)
	Rotation speed(conver, stepless)(r/min)	30~2000
Longitudinal movement of gantry (X axis)	Max. stroke(mm)	2000	2500	3000
	X axis feeding speed(m/min)	0~8
Horizontal move (Y axis)	Max. distance of spindles(mm)	2000	2500	300
	Y axis feeding speed(m/min)	0~8
	Y axis servo motor power(kW)	2×3
Vertical move (Z axis)	Z axis feeding speed(m/min)	0-4
Positioning precision	X,Y axis(mm)	≤0.1/ (Full length)
Re- positioning precision	X,Y axis(mm)	≤0.05
Hydraulic system	Motor for hydraulic pump(kW)	3
Chip removal and cooling	Type of chip-conveyor	Chain-plate type
	Quantity of chip-conveyor	1
Overall dimension	L×W×H (m)	Appr. 5.2×5.1×3.6	Appr. 5.7×5.6×3.6	Appr. 6.2×6.1×3.6
Weight of machine(t)		Appr. 30	Appr. 35	Appr. 40
Note: Other models can be made by customers' request.
