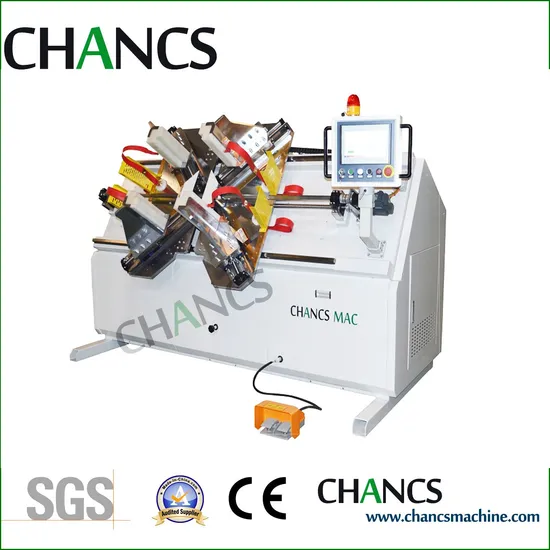

High Frequency Heating Box Assembly Press

Product Description

Introduction:
Precision drawer assembly press is also named box assembly press. It is used for high workpiece assembly and heating. It applied new heating method comparing with cabinet door assembly press. The workpiece height can be 300mm high. Max can reach 650mm high according to customer requirement. Machine applied CNC system and is integrated with high frequency heating. One drawer or box can be finished 5-20 seconds. After heating, the glue will be curved and become solid, which can help customer improve the efficiency a lot and reduce labor intensity.
Features of machine:
New design heating electrodes can heat 300mm high workpiece or more. Servo motor, ball screw, and linear guide rail can make sure the high quality and precision of assembly work (diagonal tolerance is around 0.2mm) High frequency technology only heats glue line but not wood, which can help customer save the production time (5-20 seconds can finish one door assembly) and electricity (Each frame costs is less than 0.06KWh) Precision drawer / box assembly press is controlled by PLC automatically. System can storage different frame size inside and locate the required size auto. Workers can select the dimension and machine move automatically to assembly the target frame. Easy to learn and convenient to operate. It is the best choice for wooden door, PVC wrapped door assembly such as photo frame, cabinet door, closet door, as well as other kinds frame and doors.

Model	HFPM-1205-CH	HFPM-1612-CH
Voltage	380V, 50Hz	380V, 50Hz
Control type	PLC auto control	PLC auto control
Max working size	1200x500mm	1600x1200mm
Mini working size	100x100mm	280x200mm
Max working height	300mm	650mm
Cycle time	5-20 seconds	5-20 seconds
HF heating power	5KW	5KW
Motor type	Servo motor	Servo motor
Mechanical drive	Ball screw + linear guide	Ball screw + linear guide
Overall size	2650x1450x1680mm	3050x1600x2200mm
Total weight	800kg	1000kg
