1000W High Frequency Color Screen Display Solar Charger Pure Sine Wave Power Inverter

Product Description

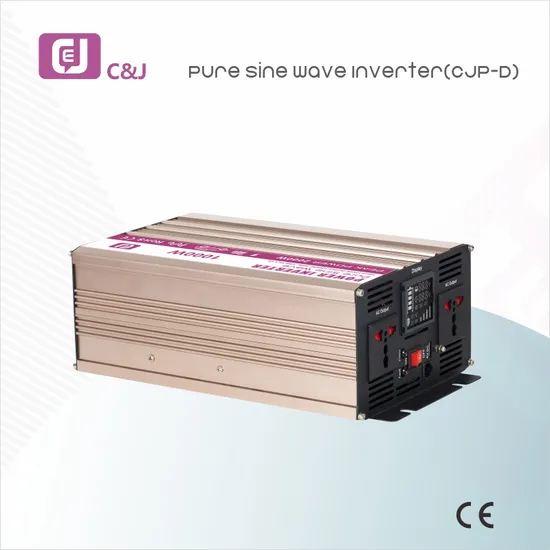

Product Description CJP-D High Frequency Color Screen Display solar pure Sine Wave power Inverter
·Inverter is a kind of power supply equipment which converts direct current (storage battery, solarcell, wind turbine, etc.) into alternating current. Because of the high frequency power conversiontechnology, the ferrite transformer is used to replace the old heavy silicon steel transformer.So our inverters are lighter and smaller than other inverters with similar rated power.Theoutput waveform of the inverter is pure sine wave, just like that of the mains.Basically, as long as the load power does not exceed the output power of the inverter, it is possible to drive.
·Pure sine wave inverter for use with Lead Acid or Lithium Batteries.CJP-D Series inverter provide reliable AC power wherever it's needed. For use with boats, RVs, cabins and specialty vehicles, as well as alternative energy, back-up and emergency power applications.
Main Advantages
·High frequency pulse width modulation technology
·Excellent double-faced circuit board and components
·High quality and high performance
·Protection function:
Overload protection
Over-current protection
High-temperature protection
Short-circuit protection
Battery reverse connection protection
Battery high-voltage&low-voltage protection
Built-in fuse protection, etc
Product Parameters

Model	CJPD-300	CJPD-500	CJPD-1000	CJPD-1500	CJPD-2000	CJPD-3000	CJPD-4000	CJPD-5000	CJPD-6000	CJPD-8000
Rated Power	300W	500W	1000W	1500W	2000W	3000W	4000W	5000W	6000W	8000W
Peak Power	600W	1000W	2000W	3000W	4000W	6000W	8000W	10000W	12000W	16000W
Input Voltage	12/24/48VDC							24/48VDC
Output Voltage	110/220VAC ± 5%
USB Port	5V 1A
Frequency	50Hz ± 3 or 60Hz ± 3
Output Waveform	Pure Sine Wave
Soft Start	Yes
THD AC Regulation	THD < 3%(Linear Load)
Output Efficiency	94% MAX
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage & Over Load & Over Temperature & Short Circuit
Working Temperature	-10ºC~+50ºC
N.W. Unit (kg)	1.0kg	2.0kg	3.1kg	4.3kg	5.2kg	9kg	10kg	10.5kg	12kg	14kg
G.W. Ctn	23kg	24kg	22kg	20kg	24.5kg	11kg	12kg	12.5kg	14kg	16kg
Packing	Carton
Warranty	2 Years

Detailed Information
Our Advantages CEJIA has over 20 years of experience in this industry and has built a reputation for providing quality products and services at competitive prices. We are proud to be one of the most reliable electrical equipment suppliers in China with more. We attach great importance to product quality control from raw materials procurement to finished product packaging. We provide our customers with solutions that meet their needs on a local level, while also giving them access to the latest technology and services available.We are able to produce large volumes of electrical parts and equipment at very competitive prices in our state-of-the-art manufacturing facility located in China.
FAQ Q1:Are you a trading company or manufacturer?A.We are professional manufacturer for low-voltage circuit breaker series products,Integrates research and development, manufacturing, processing and trade departments together. also we supply of different electrical and electronic itemsQ2: why will you choice us :A.more than 20years of professional teams will give you good quality products ,good service ,and reasonable priceQ3: Is the MOQ fixed?A.The MOQ is flexible and we accept small order as trial order.....Dear Customers,If you have any question , please feel free to contact with me , I will send you our catalog for your reference.
